Specification:
Brand: LESU
Scale: 1/14
Item Condition: New, Unpainted and Unassembled
Material: Metal, Plastic (Most of the parts are made of metal, with the exception of the cabin glass and some decorative parts made of plastic)
Net Weight of LR960 Digging Arm Excavator B0028: About 38.5KG
ID: LS-BA-B0028-MTrack-KIT
We have different tracks color to choose, the package option is selected by yourself.

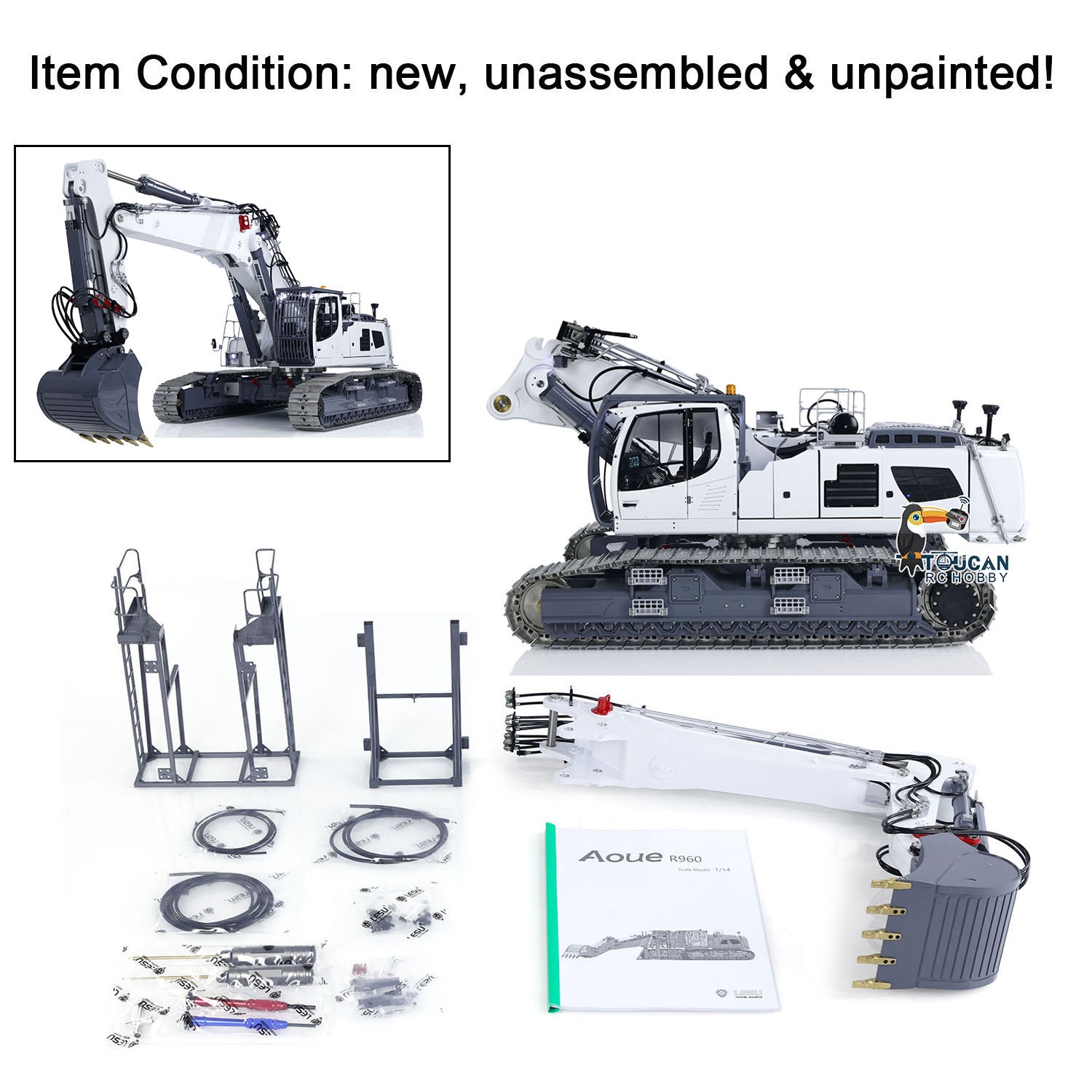

The Package Includes:

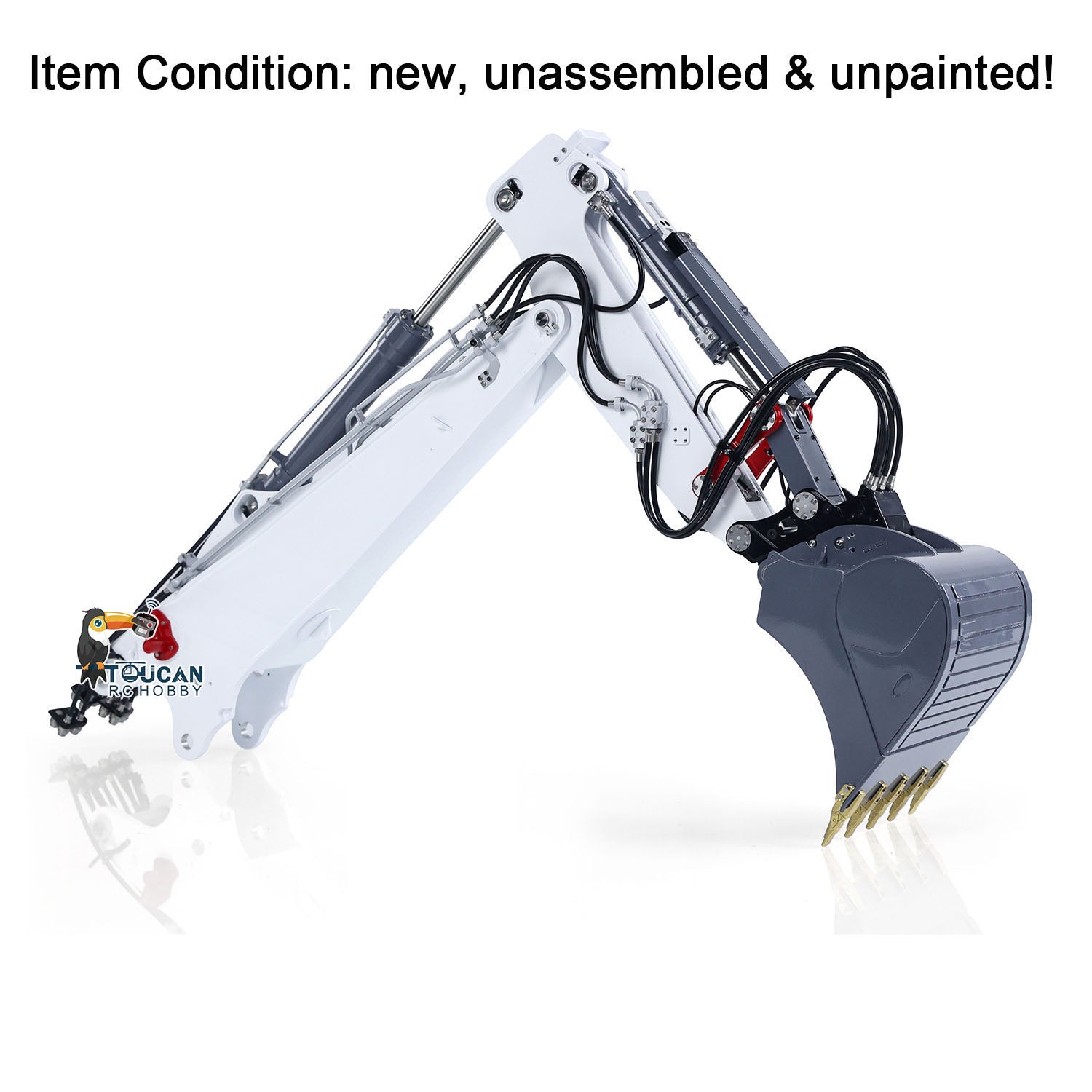

Unassembled & Unpainted 1/14 RC Hydraulic Excavator Model Comes with Digging Arm
Metal Rack of Arm
ESC
Motor
Servo
Light System
Hydraulic Motor Driving Wheel
Hydraulic System with 13-ways Directional Valve
Integrated Pump
Manual Quick Release Coupler
Rotating Warning Lights
Metal GPS
The Package Does Not Include:
Sound System
Frsky XE Customized Remote Controller and Receiver
Battery
Charger
Hydraulic Oil
Feature:?
1. The entire machine is driven by hydraulic power, with 90% of the fixed oil circuit welded from pure copper, ensuring both a highly realistic appearance and the stability and sealing of the oil circuit system.
2. The hydraulic workstation uses a dual-pump, dual-power system, providing balanced power distribution, resulting in more coordinated, smooth, and linear movements. The oil tank features a visible large window and a visible hydraulic oil filter, making it easy to monitor the oil circuit system.
3. The machine adopts a modular design, with full lighting throughout. It is equipped with one warning light, two simulated GPS units, and nine doors that can be opened, offering more convenient operation.
4. The machine consists of 95% metal parts, with an all-metal track and copper-material travel frame, and is equipped with steel counterweights to provide a stable and robust body for the Digging Arm.
5. It features hydraulic power for both travel drive and rotation.
6. The machine is equipped with an adjustable-width,dual-hydraulic-cylinder-powered telescopic travel frame.
7. It has adjustable guide wheels, allowing for greater maneuverability.
8. The rotation system integrates a seven-channel oil slip ring, offering high precision and excellent sealing, effectively preventing leaks, and providing stable hydraulic power to the chassis components.
9. This model introduces a newly designed simulated rotary support turntable, featuring easy installation, convenient maintenance, and space-saving installation.
10. It is equipped with a simulated stainless steel cab protective net, a hydraulically powered lifting cab, and an electronic display screen for real-time monitoring of electrical components.
11. The arm of exvacator is processed through full sheet metal welding, ensuring structural strength while maintaining balance between weight and the power system.
12. The boom is equipped with a 13-channel quick-release oil circuit system, and the electrical circuit uses a magnetic connection. It is equipped with a Digging Arm stand, allowing quick switching between the Digging Arm and the excavator boom.
13. It comes with a quick-release for all hydraulic excavator attachments, with a 5-channel quick-release oil circuit and an added return oil pipeline for hydraulic motor attachments. It allows for free swapping and switching of different attachments and is compatible with all attachments from the LESU AC360 excavator, offering rich playability.
14. It is equipped with a rotating hydraulic crusher that can achieve 360¡ã infinite rotation.
