Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Size: 795*268*257mm
Wheelbase: 215mm
Product Weight: 18.2KG
ID: LS-BA-B0016-MTrack-RTR-Y
The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System
There are some attachments for optional upgrade, the package option is selected by yourself.
FlySky PL18EV Lite Remote Controller and Receiver
Battery
The Package Does Not Include:
Sound System
Charger
Hydraulic Oil
Parameters:
Ground clearance from the top of the cab: 228.2 mm
Ground height of the bottom of the work: 87.8 mm
Total track length: 382.9 mm
Wheelbase(drive wheel center base): 215.1 mm
Minimum swing radius: 251.3 mm
Maximum digging height: 758.6 mm
Slewing speed: 10 r/mm
Slewing drive reduction ratio: 1:20
Slewing motor speed: 1500 r/min
Maximum pressure of hydraulic workstation: 4 mpa
Rated pressure of hydraulic workstation: 3 mpa
Maximum unloading height: 523.9 mm
Maximum digging depth: 491 mm
Maximum digging radius: 767.7 mm
Maximum excavation radius of ground: 752.4 mm
Gauge: 250.7 mm
Track width: 43 mm
Total width of the excavator: 268.3
Traveling drive wheel speed: 42 r/mm
Travel drive reduction ratio: 1:370 r/min
Traveling motor speed: 1400 r/min
Number of reversing valve channels: 7
Height from the bottom of X rack to ground: 38.2 mm
Features:

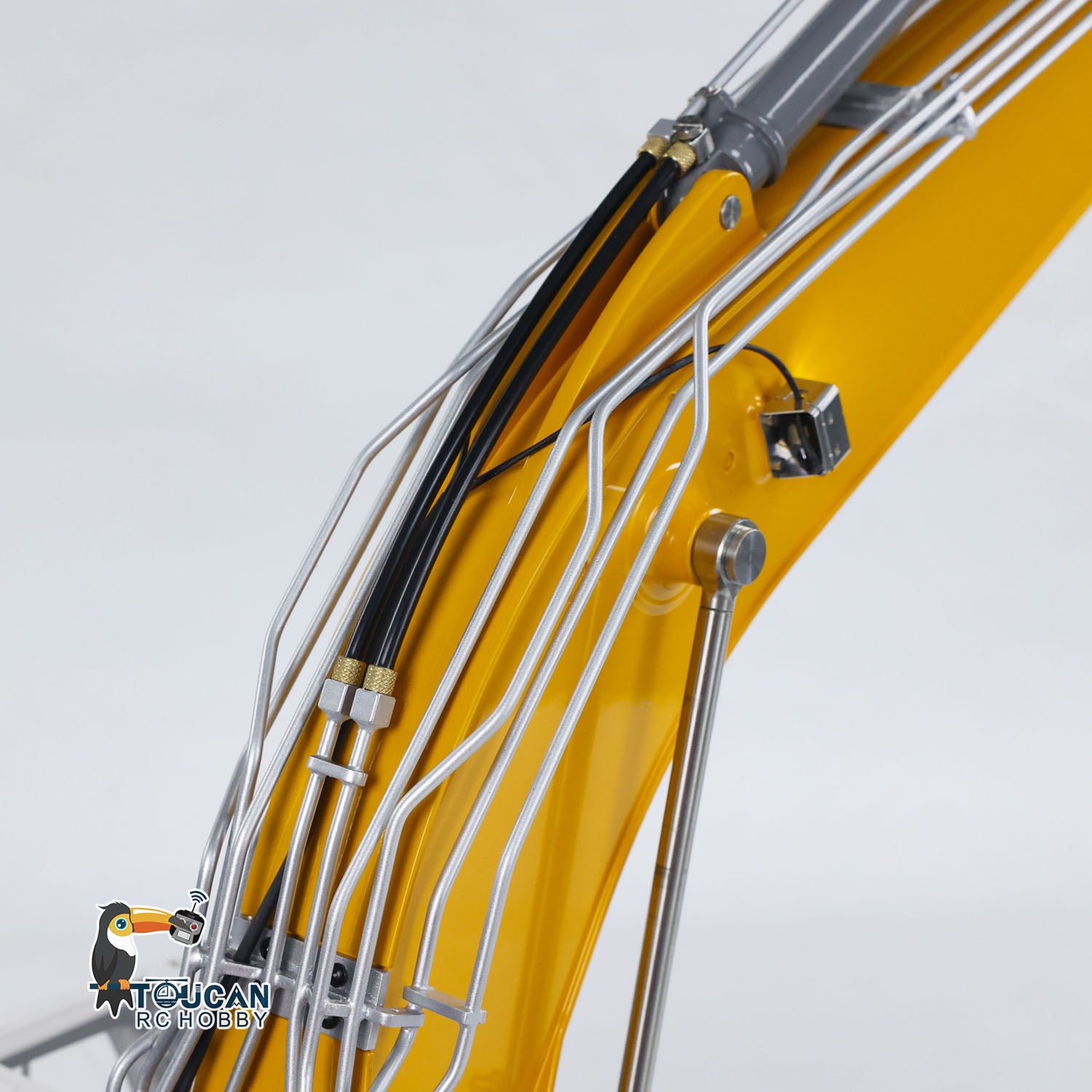

1. Hydraulic excavator arm with a large cylinder body design provides powerful and precise digging capability, making it ideal for a wide range of construction and excavation projects.
2. The entire machine is equipped with realistic lighting and electronic displays, and a convenient one-button circuit control system, allowing for easy operation and enhanced accuracy.
3. The modular design and aluminum alloy excavator arm and counterweight, precision CNC machined for durability and reliability, provide flexibility and ease of maintenance.
4. The oil circuit system is 80% welded with copper, and 90% of the machine is made of metal materials, making it strong and durable enough to withstand even the most demanding work environments.
5. The precise hydraulic system ensures smooth and linear movement, providing exceptional coordination and fluidity in operation, which is critical in construction and excavation work.
If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
