#Specification：
Manufacturer: CROSSRC
Item Condition: New, Assembled and Painted.
Material: Metal, Plastic
Scale: 1/8
Size: 602*266*309mm
Wheelbase: 436mm
Wheel Tire: 2.2inches (136*55MM)
Axle: 4X4, Differential Lock, Nylon Shell, Metal Gears)
Motor: 560 25T Brushed Motor
ESC: Hobbywing 880 ESC
Servo: 25KG, 3KG
Gearbox: 2Speed
Size of Battery Compartment: 160X60X40mm
ID: CROSS-90100175-EMO-X4-2025-775BR-PNP-OG
#The Package Includes:
1pc 1/8 Assembled and Painted EMO X4 Crawler Model
Brushed Motor
Brushed ESC
Servos
Light System
Sound System (Horn and engine sounds, not linked to throttle)
6CH Remote Controller and Receiver
#The Package Does Not Include:
Battery
Charger
Features:
1. The EMO X4 "Big Leopard" adopts a hardcore off-road pickup design, featuring a specially developed long-wheelbase climbing chassis. The proportionally scaled chassis wheelbase (436mm) has been increased by 61mm compared to the EMO X "Big Rhino," significantly enhancing steep slope climbing performance. The 436mm ultra-long wheelbase incorporates a metal center driveshaft to ensure efficient and stable power delivery.
2. The cab and rear bed utilize a split-structure design inspired by full-scale vehicles, paired with external nylon split wheel arches. Factory-installed roof rack components provide a practical off-road aesthetic. The front and rear shells are independently mounted: the front shell employs hidden quick-release latches and includes a simulated interior with a driver figure, while the rear shell remains fixed (no disassembly required for battery/powertrain access). The roof rack features simulated recovery boards, auxiliary fuel tanks, and a dual-effect sound module.
3. Factory-equipped with a synchronized full-vehicle lighting system and dual high-power spotlights, enabling daylight-like visibility for nighttime off-road adventures.

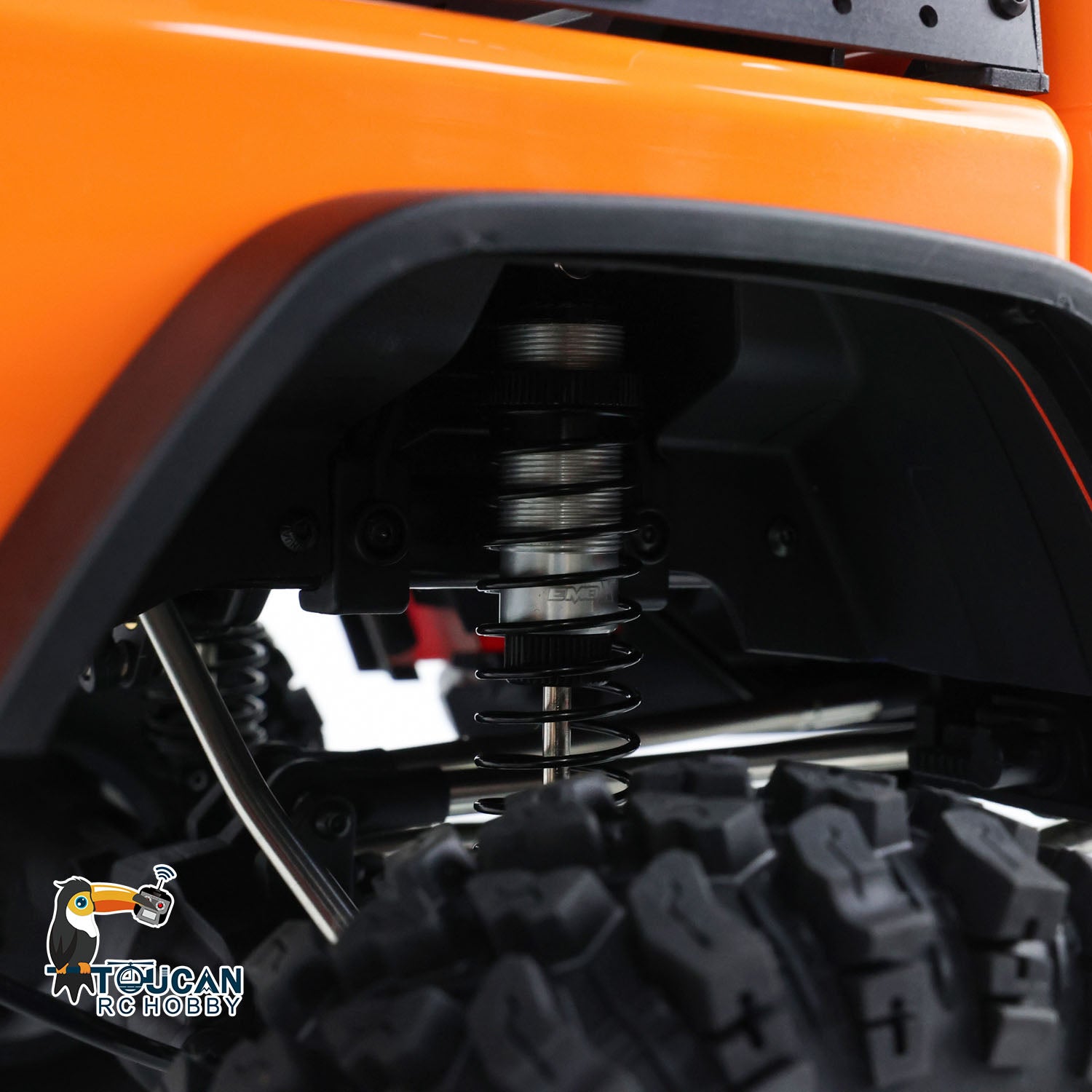

4. 20mm large-diameter CNC-machined shock absorbers balance robust support with agile articulation. The reinforced ball joint linkage system enhances chassis impact resistance during high-intensity maneuvers such as hill assaults and landings.
5. Standard Crossrc-exclusive rear stabilizer linkage (industry-first in RC modeling) ensures stable handling at high speeds by mitigating center-of-gravity shift-induced rollovers.
6. Robust integrated portal axle structure delivers exceptional torsional resistance for high-power systems, ensuring structural integrity.
7. Performance-optimized configuration includes:
- Two-speed transmission
- Front/rear independent differential locks
- Front-biased weight distribution for climbing
- CNC-machined threaded shock absorbers
- Lightweight beadlock wheels paired with TALON MT tires
(Factory configuration achieves outstanding out-of-box performance)
8. Advanced drivetrain components:
- Powder metallurgy (PM) high-strength alloy gears
- Precision-cut gear trains
- Hybrid fiber-reinforced nylon main gear assembly (wear-resistant, low-noise)
- ABEC3-grade bearings with enhanced weather resistance for extended maintenance intervals

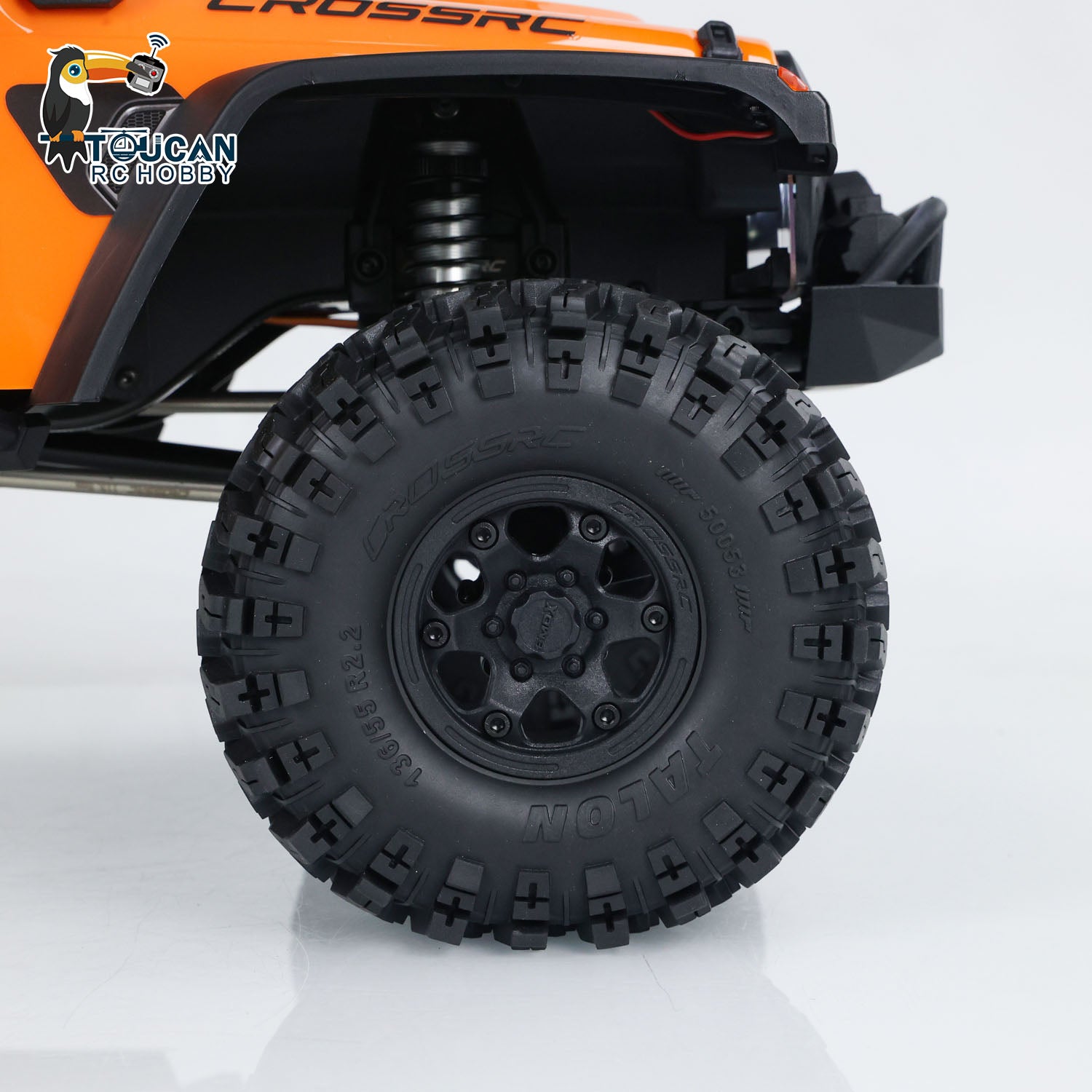

9. 2.2-inch lightweight nylon beadlock wheels with TALON MT tires utilize professional-grade composite materials for high-traction, durable, and puncture-resistant performance.
