Note: This is a new product. If you are interested, pls feel free to contact us for more information, thank you for your understanding and waiting!
#Specification:
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Valve: Metal, 7+2CH
Net Weight: About 6.5KG
ID: HTM-J110W-RTR-Y
#The Package Includes:

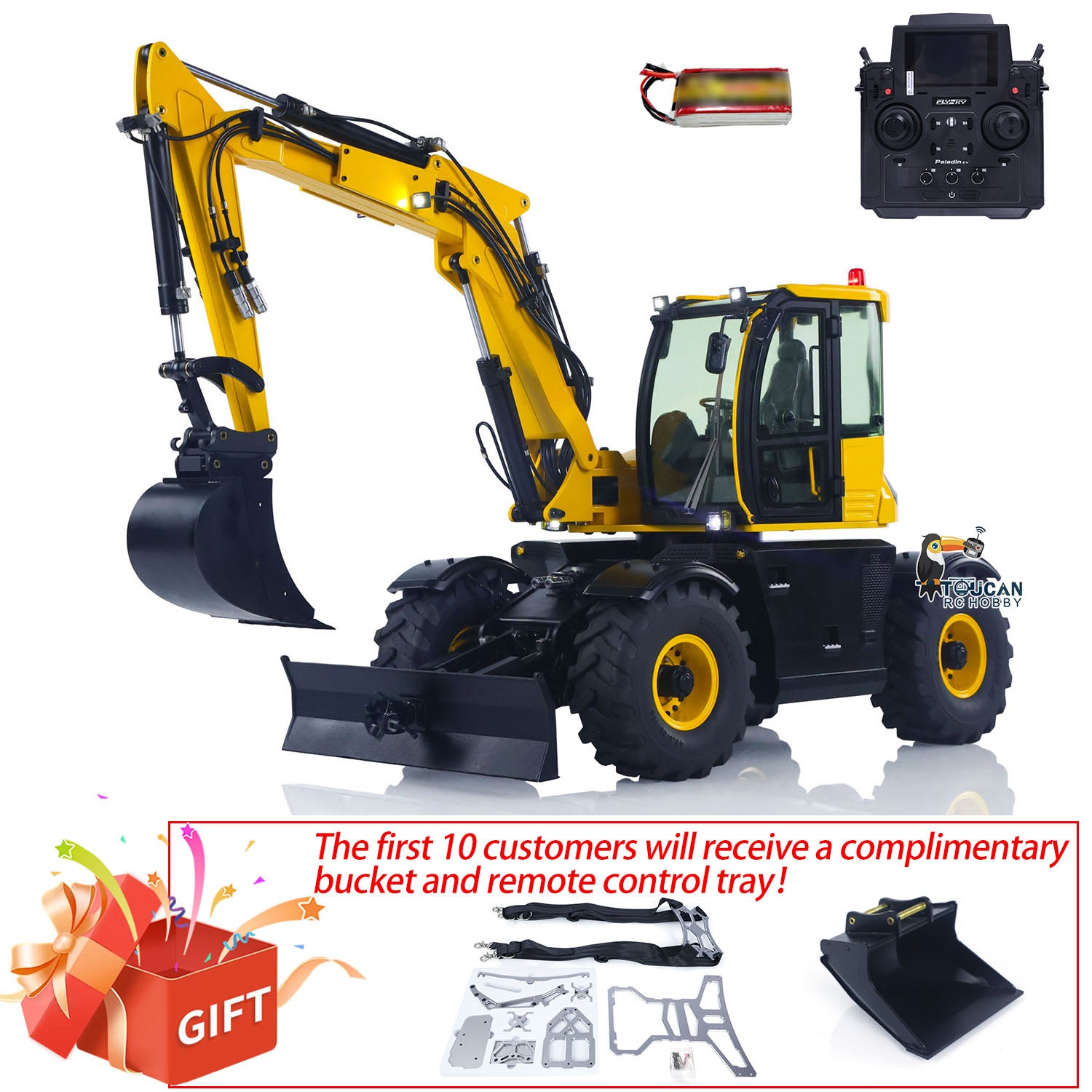

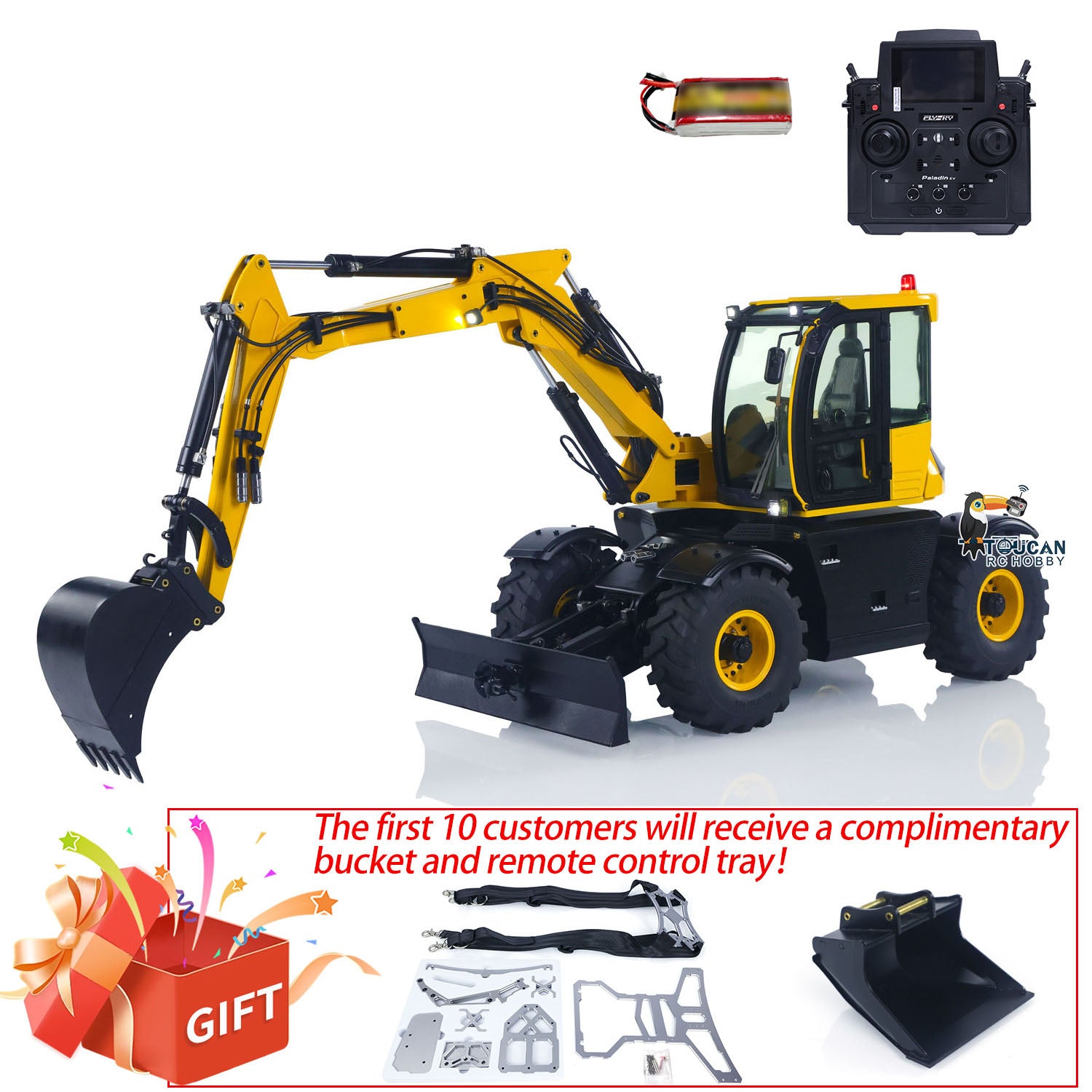

1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo
Light System
Hydraulic System with 7 +2 channels Reversing Valve
Manual Quick Release Coupler
Rotating Warning Lights
FlySky PL18EV Remote Controller and 2PCS Receiver
Battery
#The Package Does Not Include:
Sound System
Charger
Hydraulic Oil
#Feature:

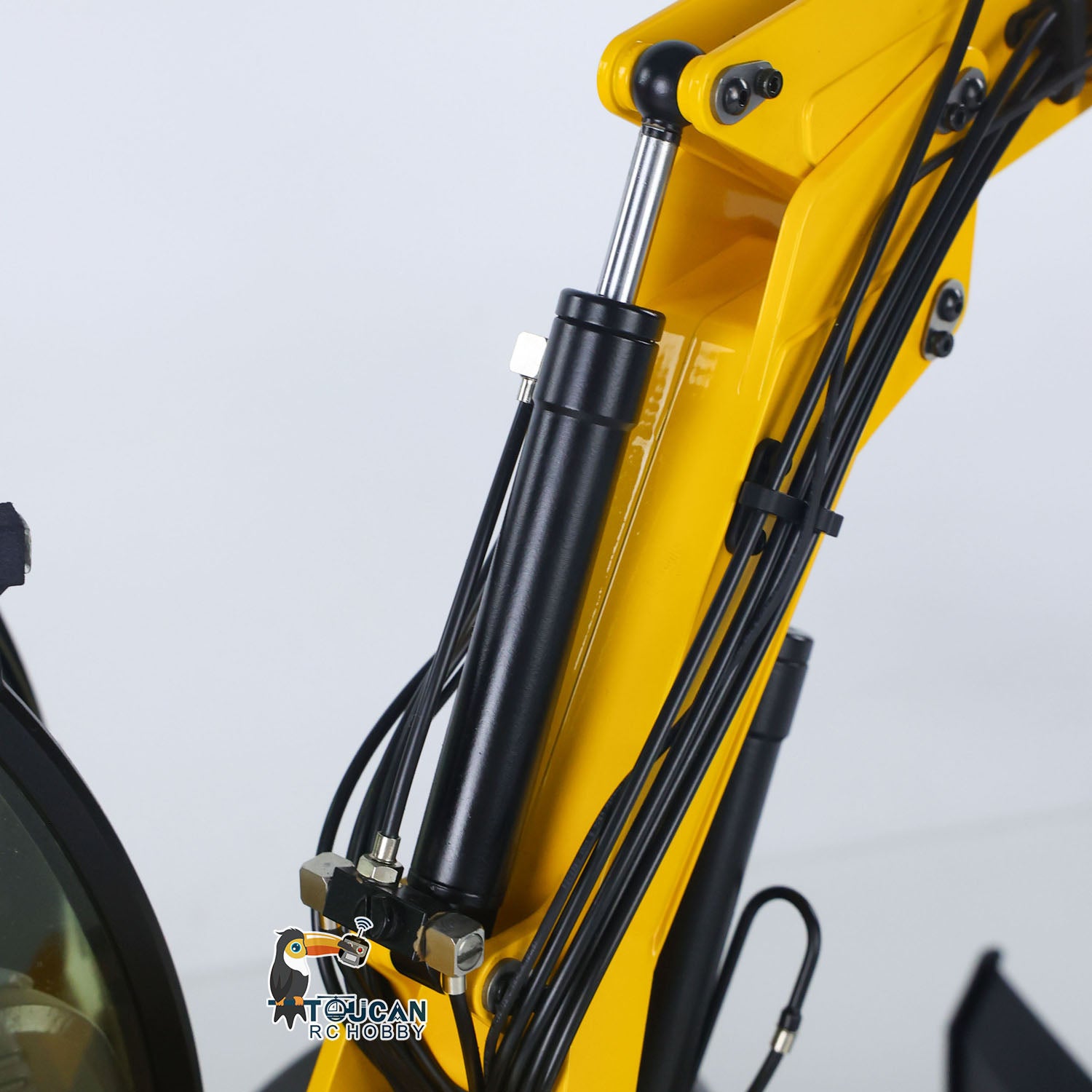

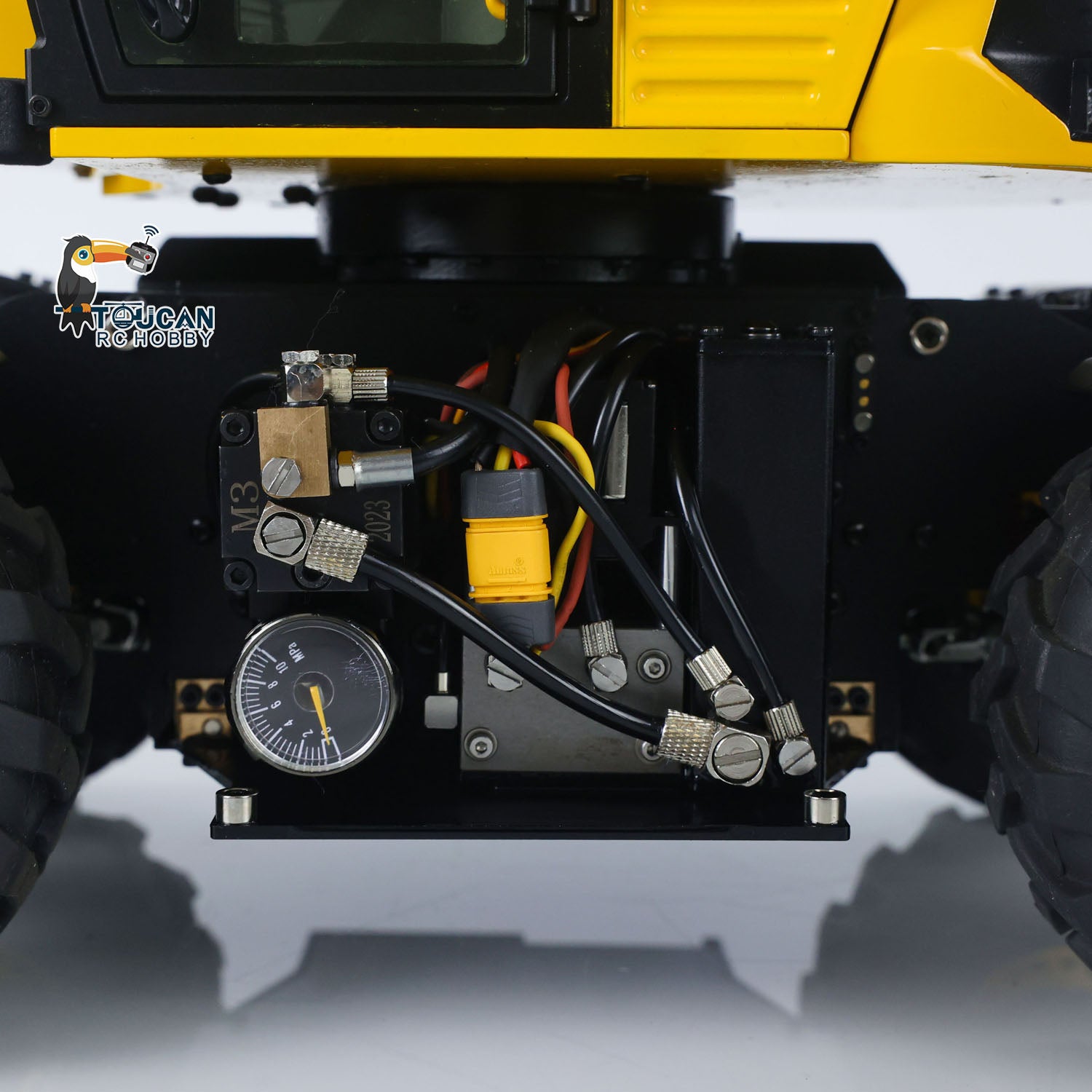

1. The hydraulic pump is equipped with a pressure-adjustable relief valve. The integrated hydraulic-electric circuit loop and enhanced bearing positioning mechanism effectively minimize the probability of oil seepage.

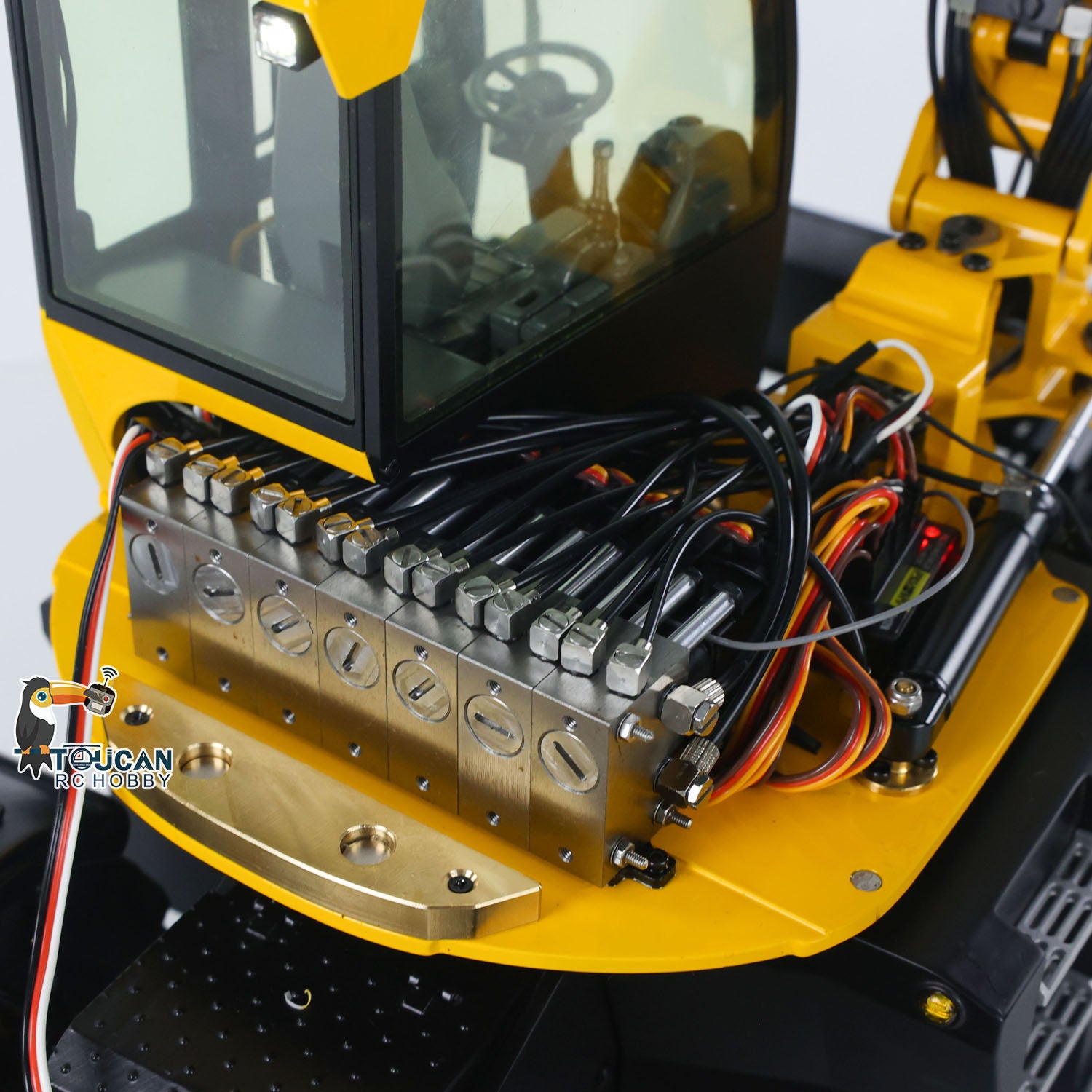

2. The upper chassis incorporates a 7-way directional control valve, while the lower chassis features a 2-way directional control valve with neutral position return functionality.

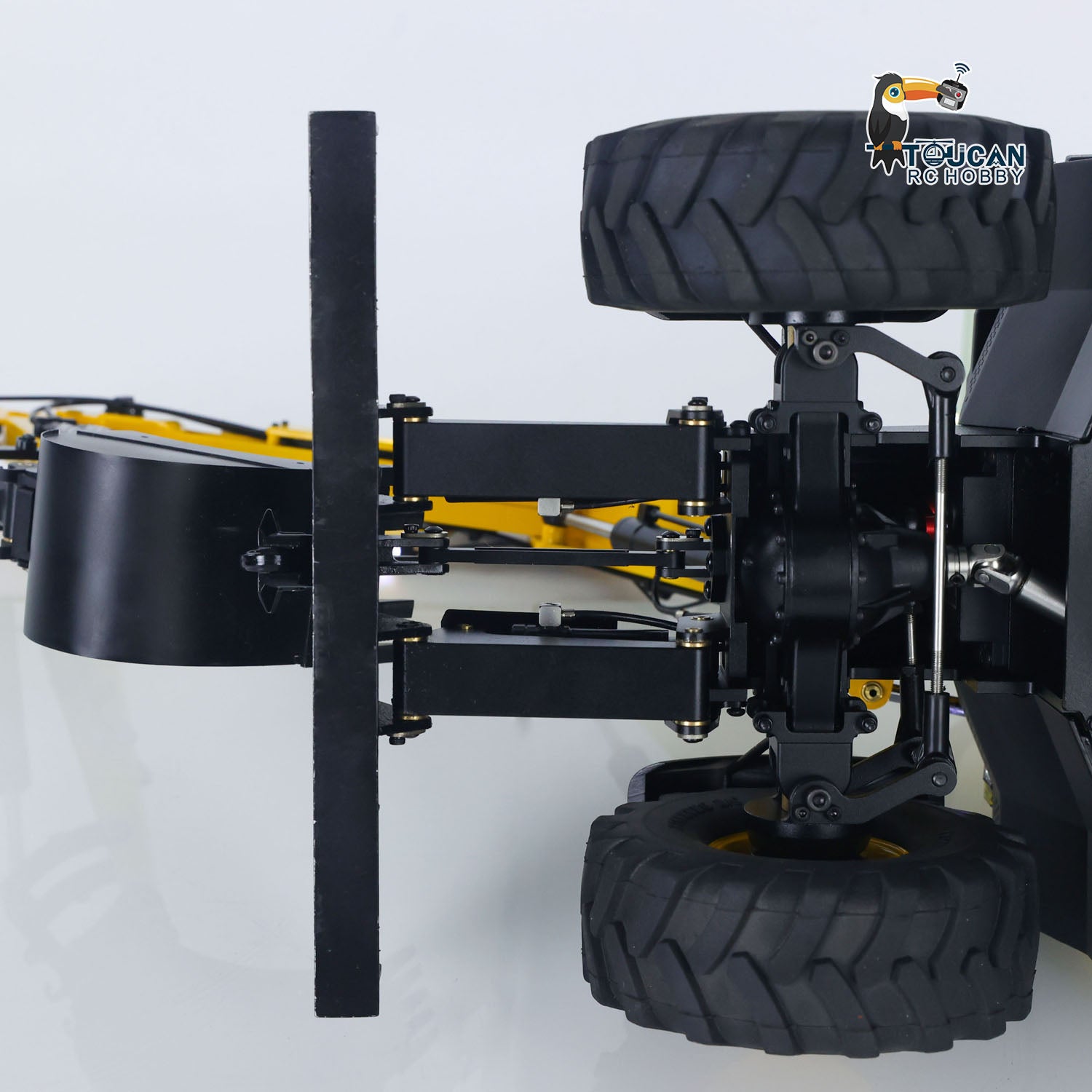

3. Both front and rear axles are steerable, offering three distinct steering modes for operational flexibility.

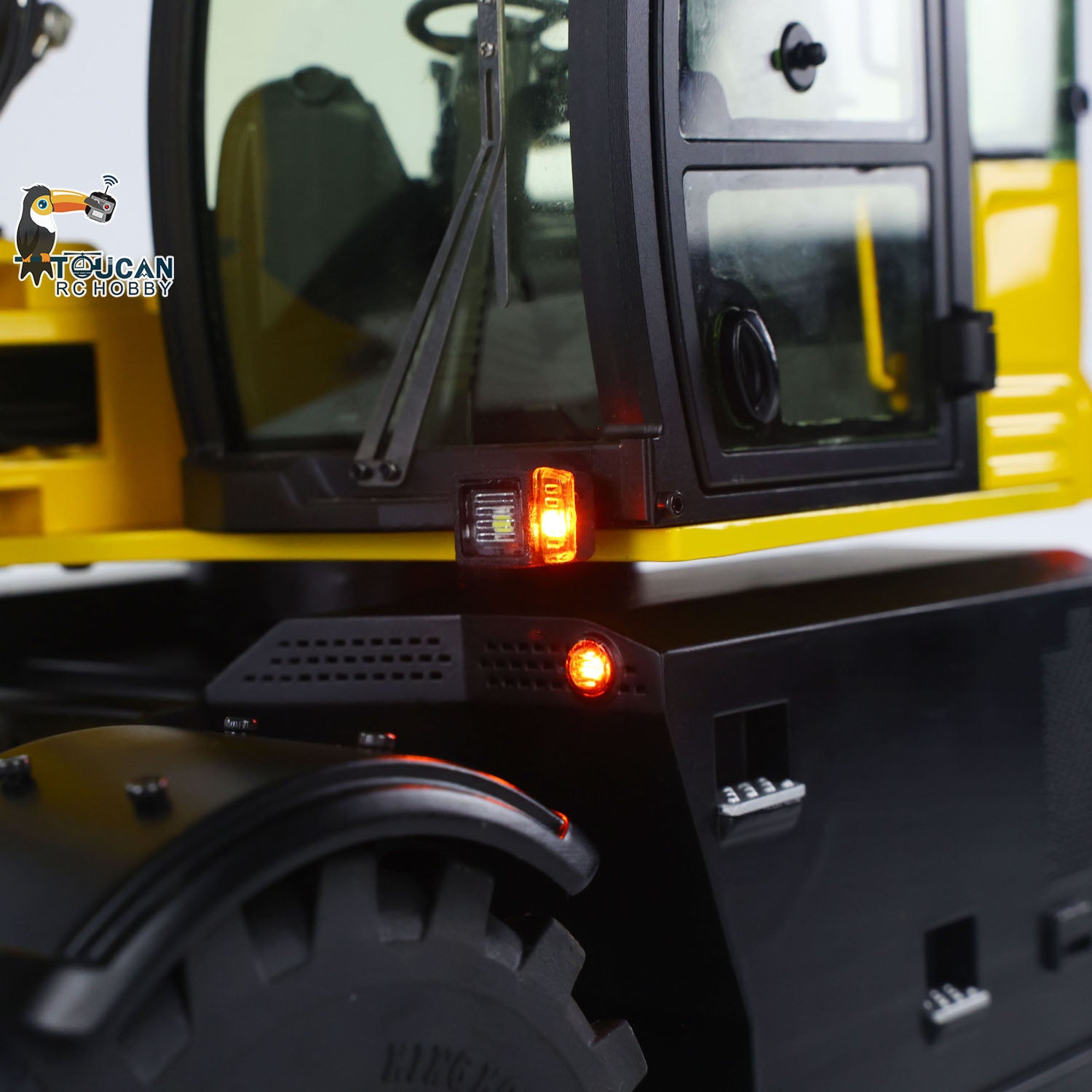

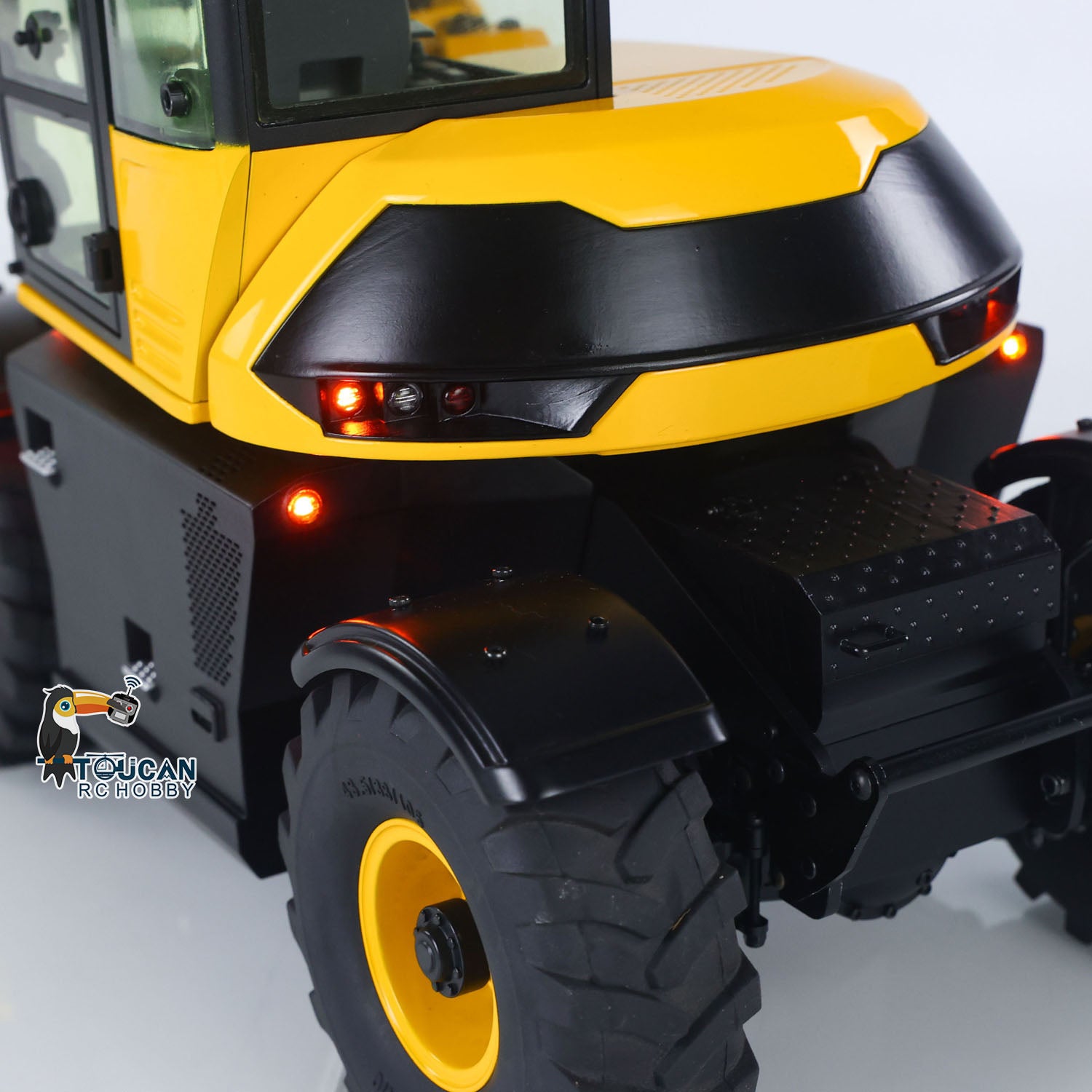

4. The system integrates multi-functional warning lights, turn signals, reverse/brake lights, rotating beacon, and reverse buzzer. Note: Sound module is not included in this configuration.

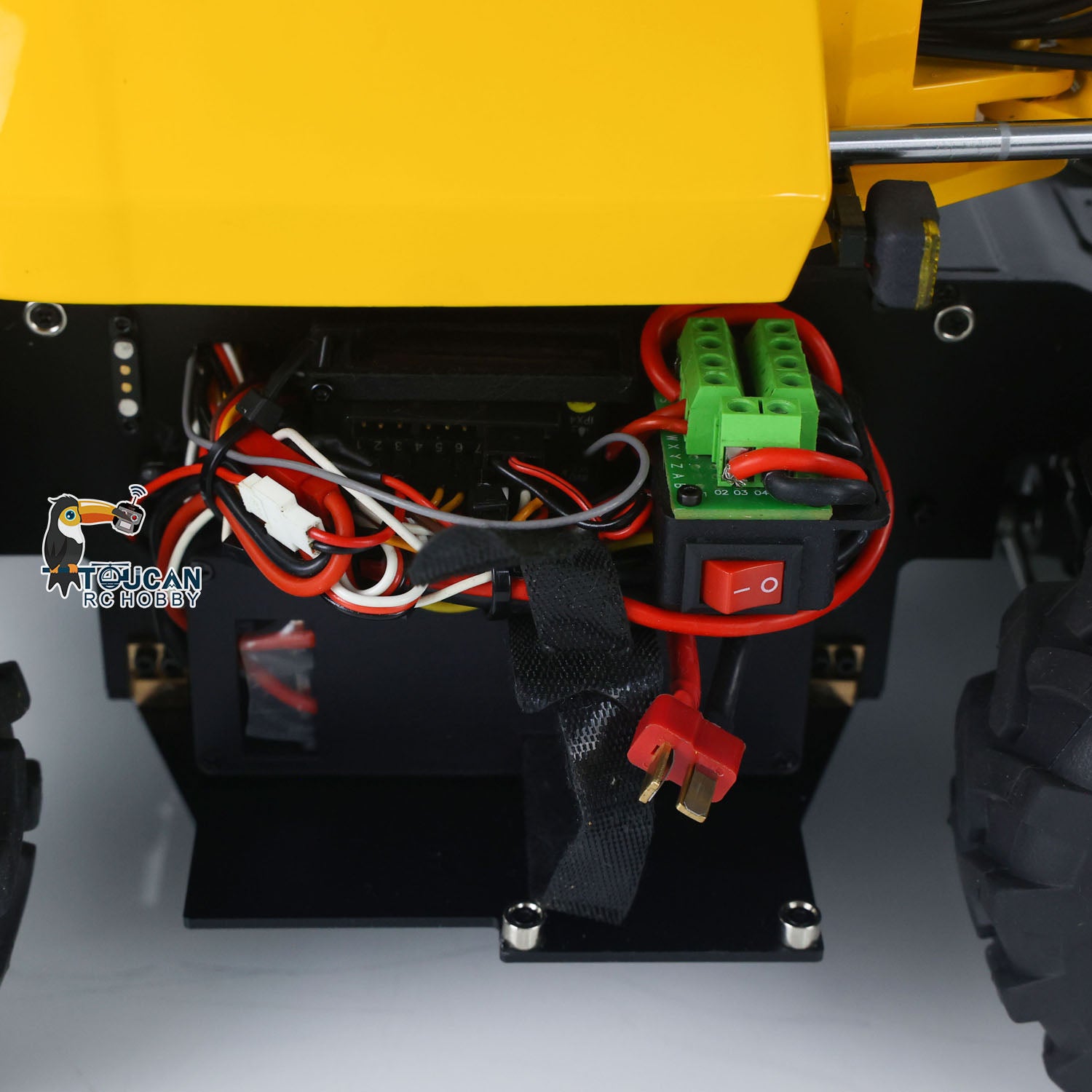

5. Features a manual quick release coupler. The upper chassis contains two auxiliary hydraulic circuits and one backup electrical circuit, while the lower chassis provides one additional auxiliary hydraulic circuit.
6. The control system is equipped with a Flysky PL18EV transmitter and dual FGR12B receivers.

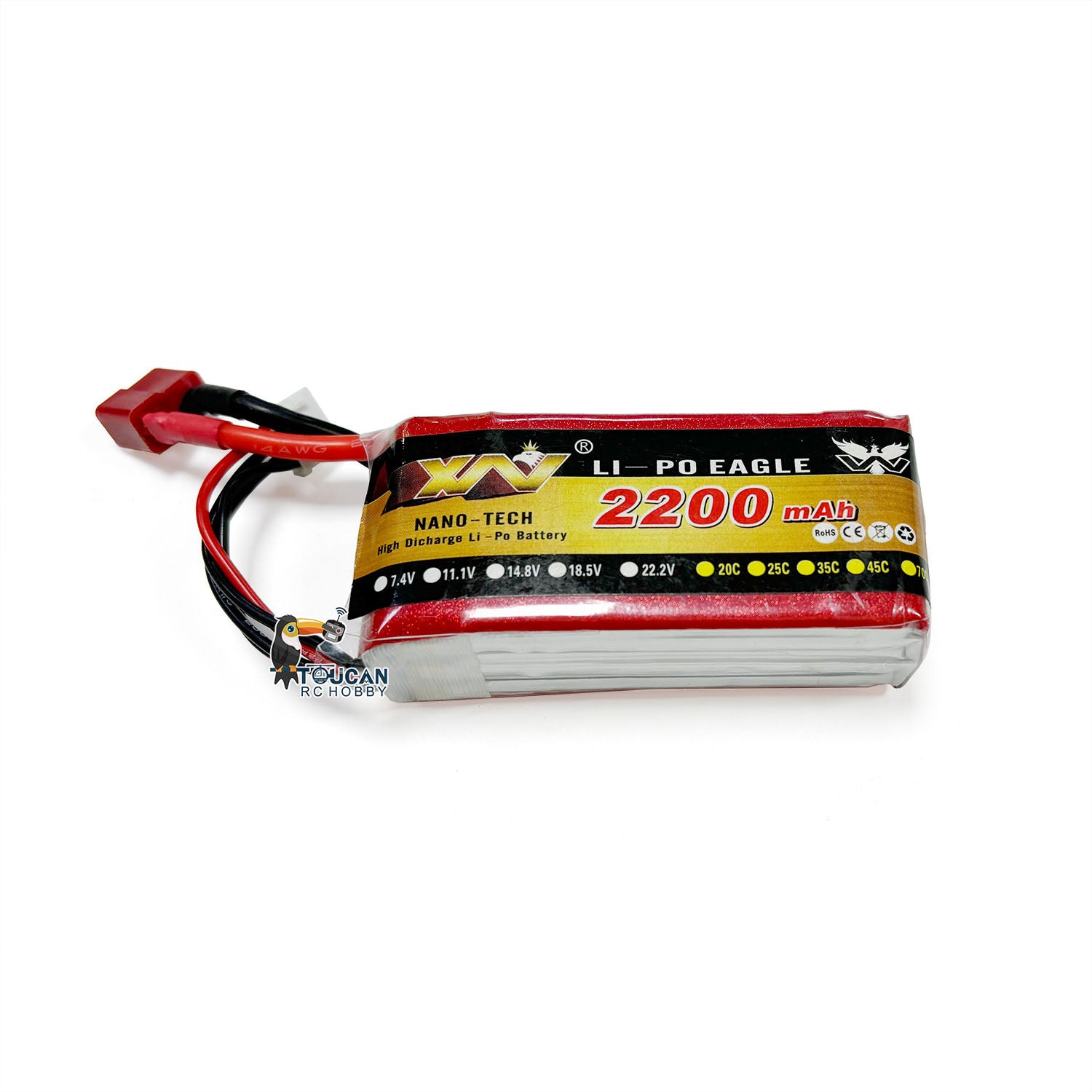

7. Powered by a 3S 2200mAh Li-Po battery (dimensions: 78×34×26mm) delivering approximately 25 minutes of continuous operation.
Pay Attention!
1. Hydraulic pressure recommendation: Maintain system pressure within 3MPa parameters. As the pump employs a unidirectional ESC, ensure the transmitter's hydraulic control knob remains fully counterclockwise (left limit position) during system initialization.
2. Post-delivery commissioning procedure:
a) Replace the standard tank screw with the ventilated fastener using provided gasket
b) Manually extract axle nuts from all four wheels

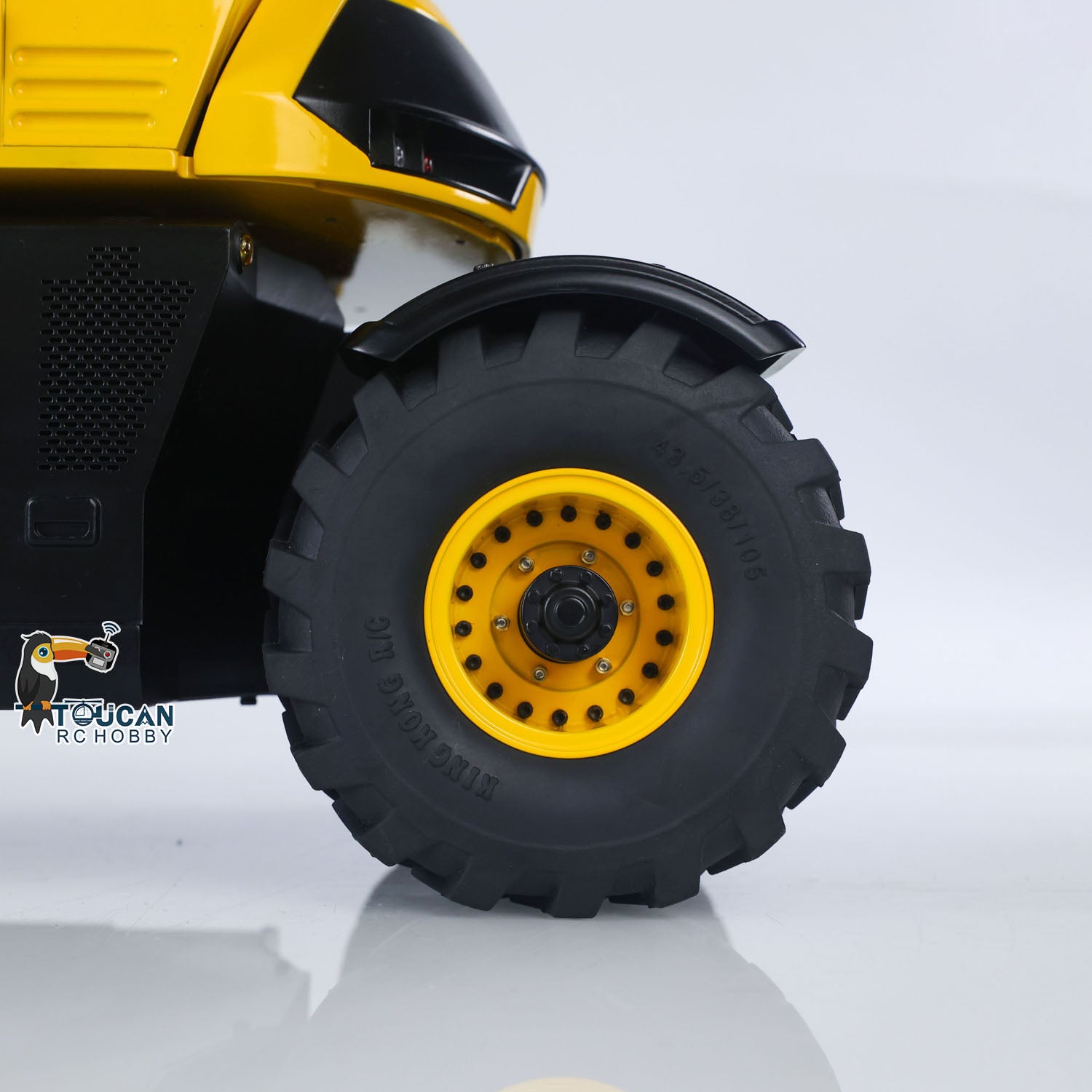

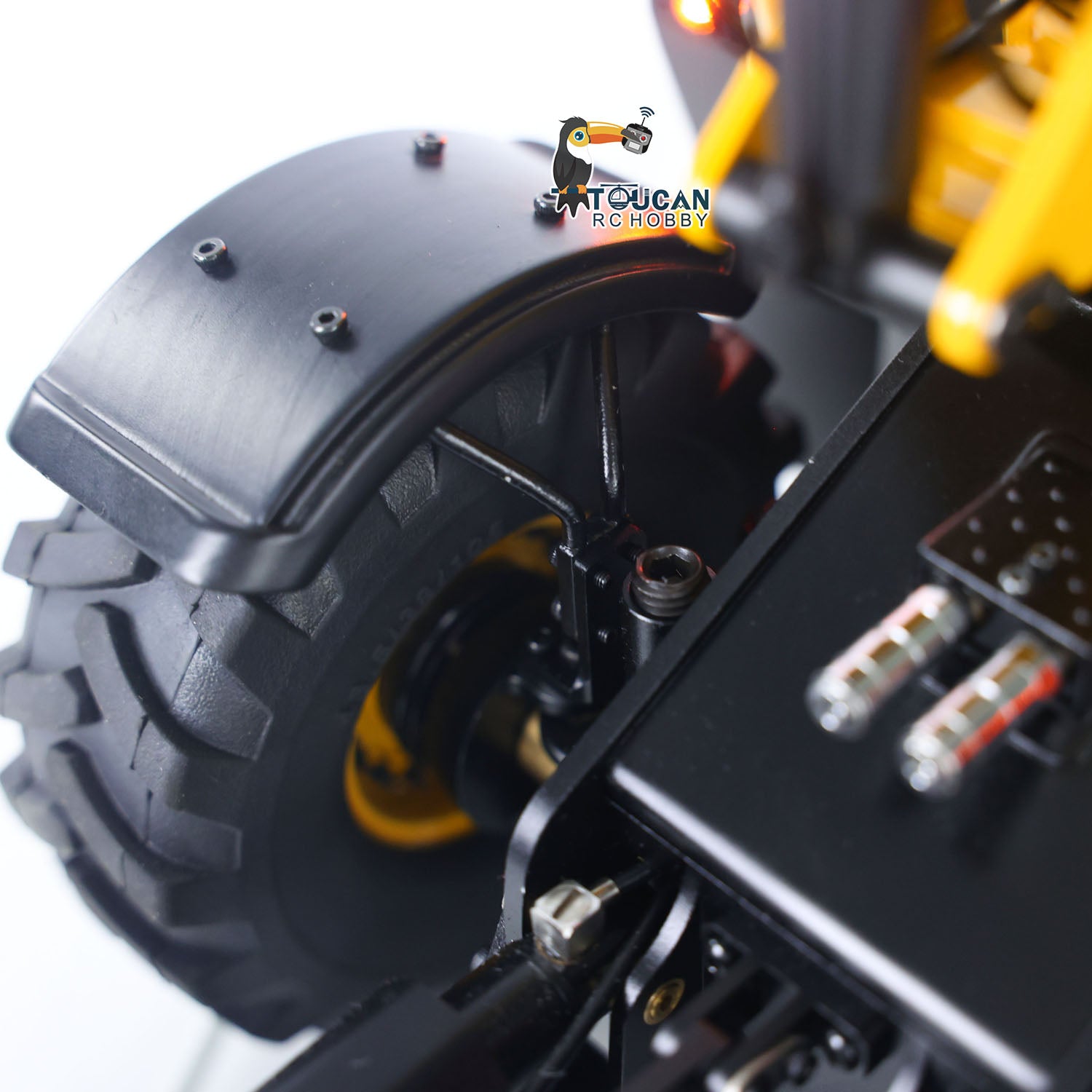

c) Remove tires and install mudguards in designated positions
3. Installation requirements:

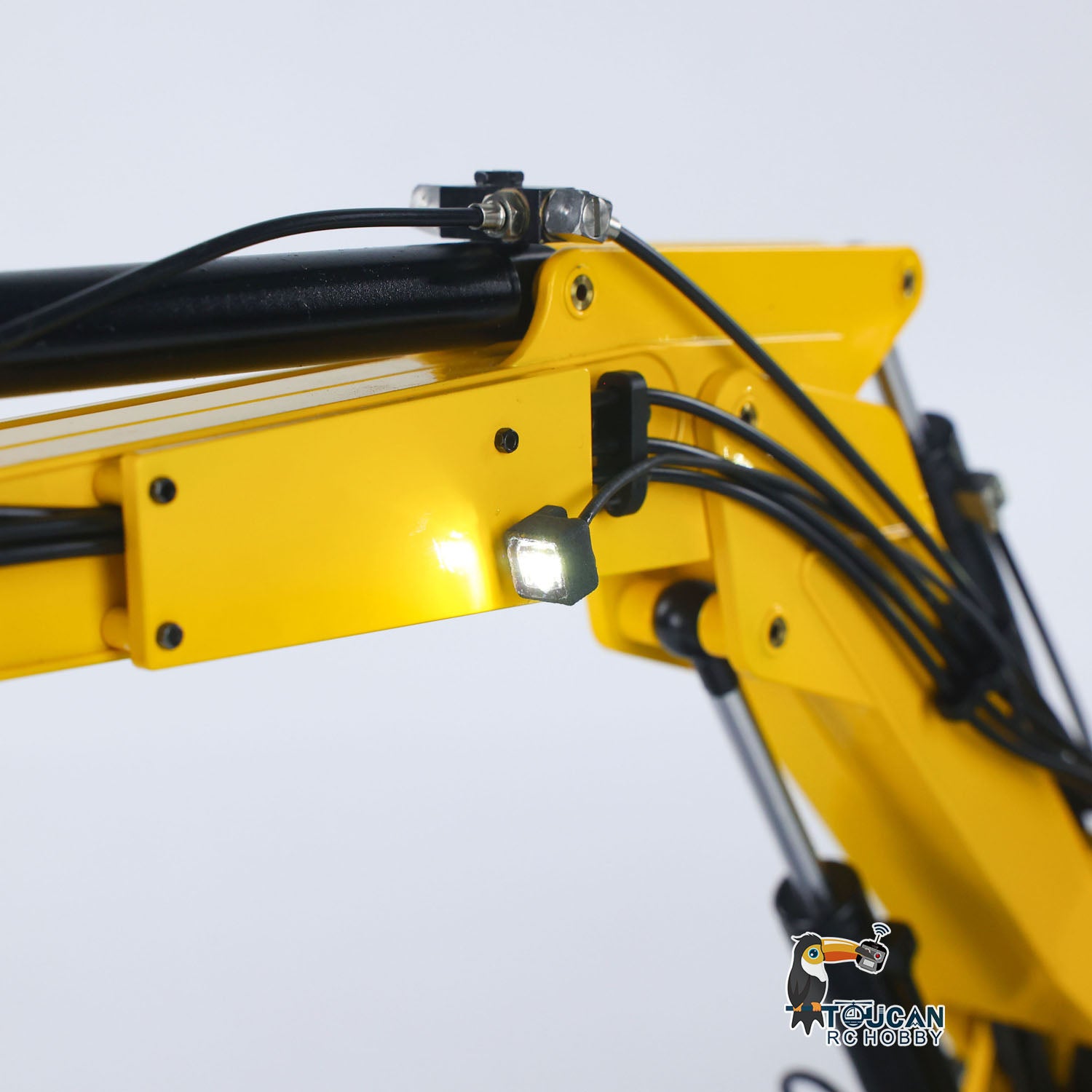

a) Secure mid-arm auxiliary lights using provided fasteners

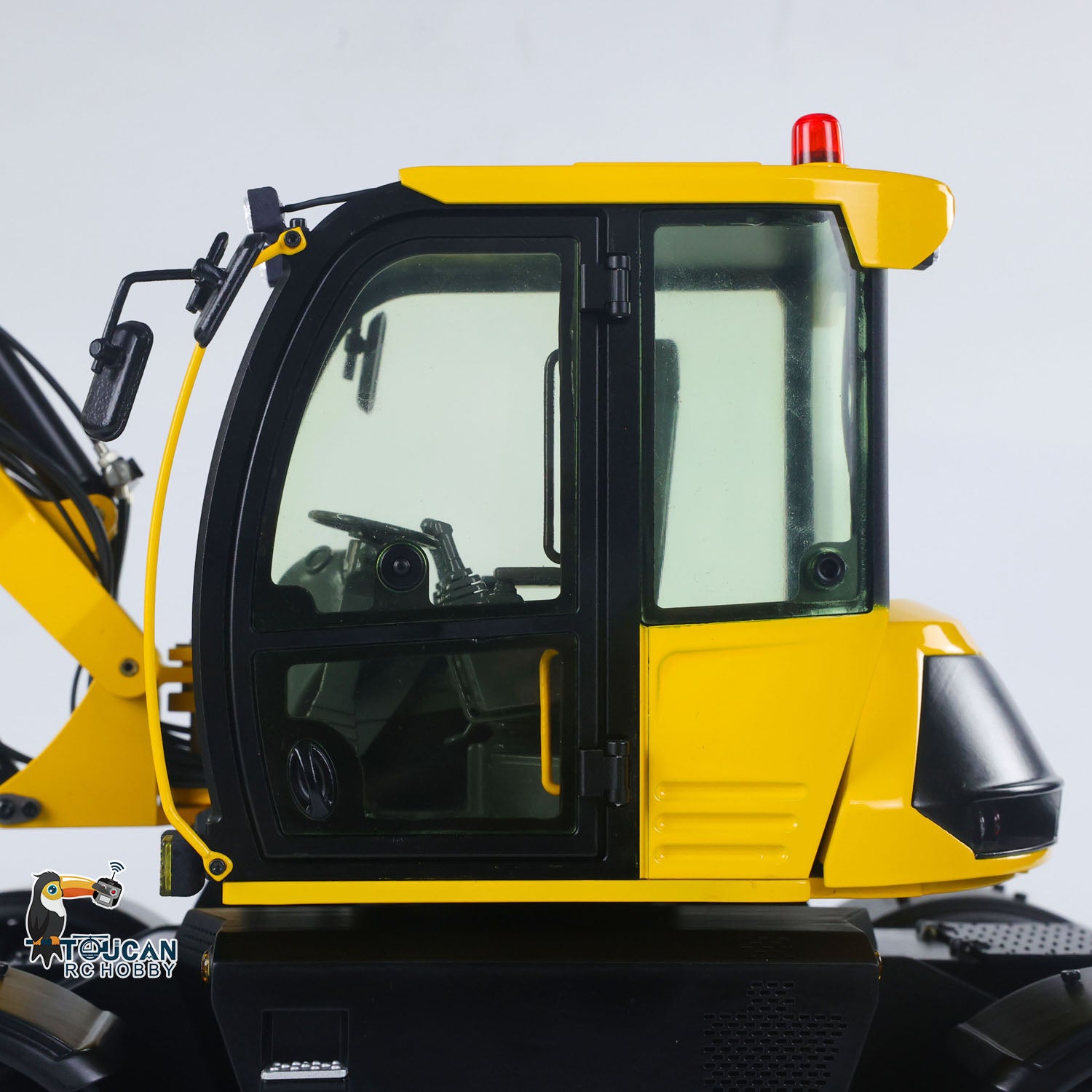

b) Mount left-side integrated handle-mirror assembly and right-side mirror unit to cab structure with specified hardware
