Note: This is a pre-order product, it expected at least a three-month lead time after ordering, pls feel free to contact us for more information, thank you for your understanding and waiting!
As an authorized distributor of the brand, we ToucanHobby guarantees that every product you purchase is authentic and supports personalization. Each item undergoes rigorous testing and inspection by our highly qualified engineers before dispatch. Our commitment to customer satisfaction goes beyond just the products; we also offer comprehensive after-sales support to assist you with any issues you may encounter.
Note: Buyers without experience should not attempt to set up the remote control. If you are unsure how to operate the product, please consult with us. We have professional technicians available to help you solve any problems.

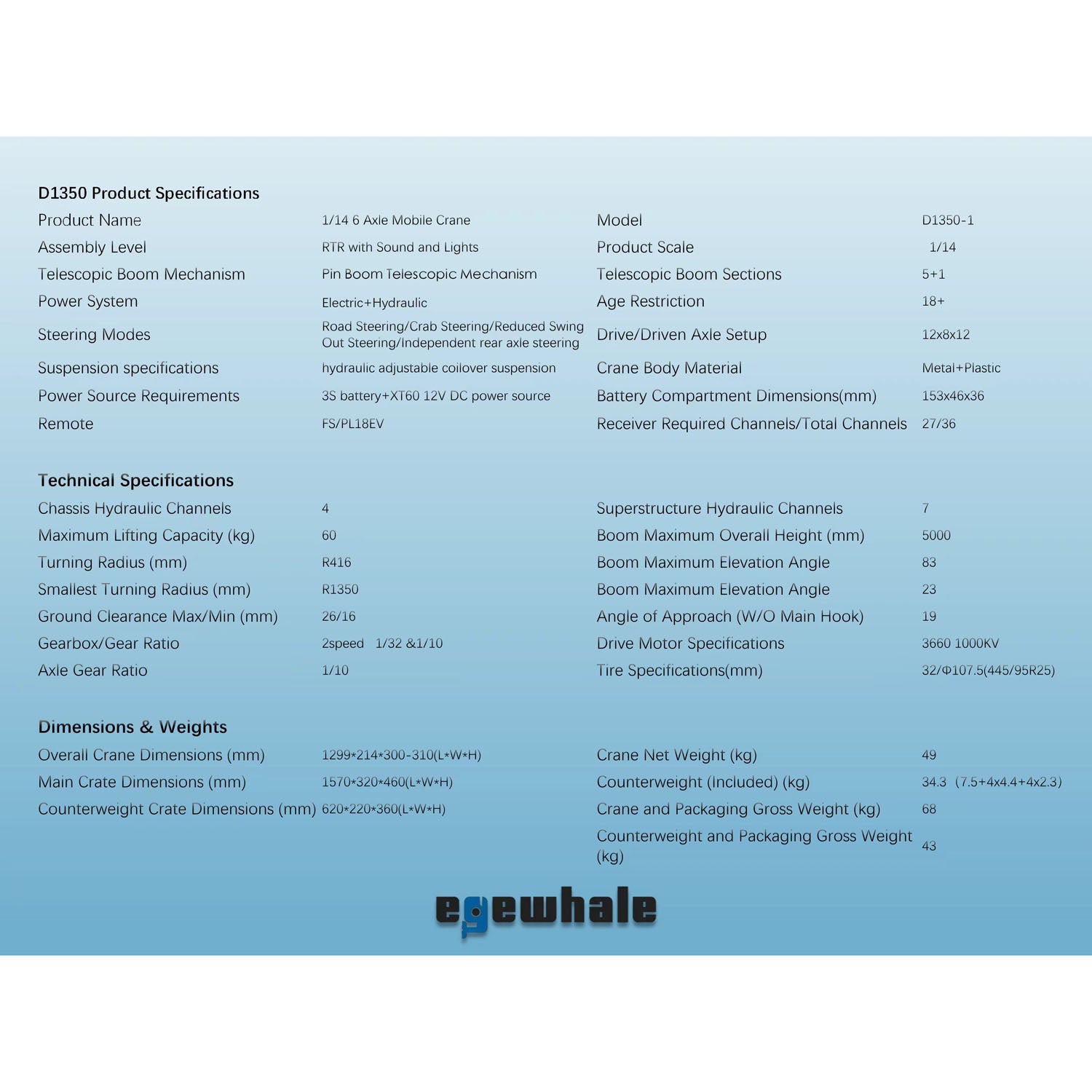

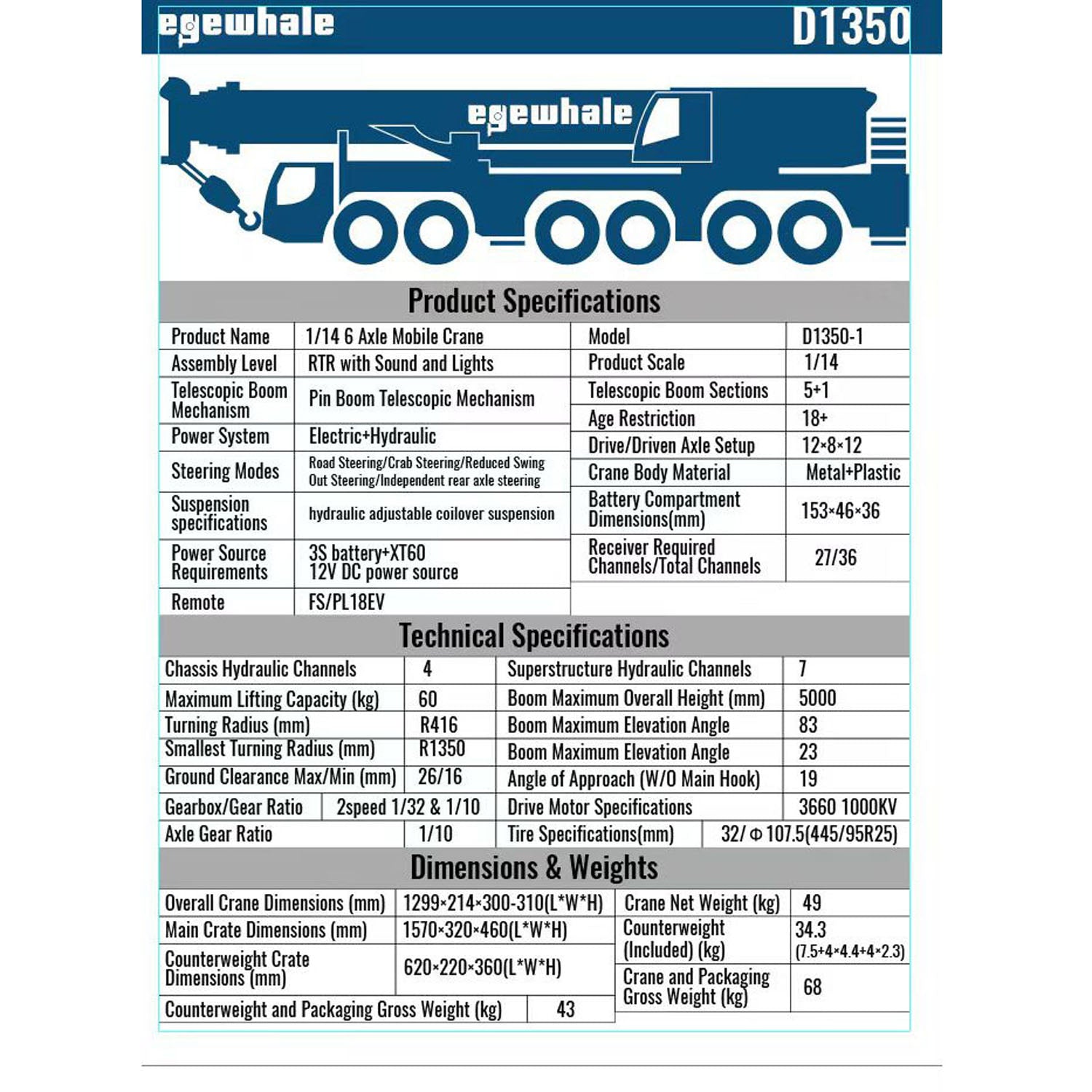

Specification:
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Crane Net Weight (kg): 49
Counterweight (Included) (kg): 34.3 (7.5+4x4.4+4x2.3)
Crane and Packaging Gross Weight (kg): 68
Counterweight and Packaging Gross Weight (kg): 43
Overall Crane Dimensions (mm): 1299x214x300(L W H)
Main Crate Dimensions (mm): 1570x320x460(L W H)
Counterweight Crate Dimensions (mm): 620x220x360(L W H)
ID: JMJ-D1350-1-PNP-Y

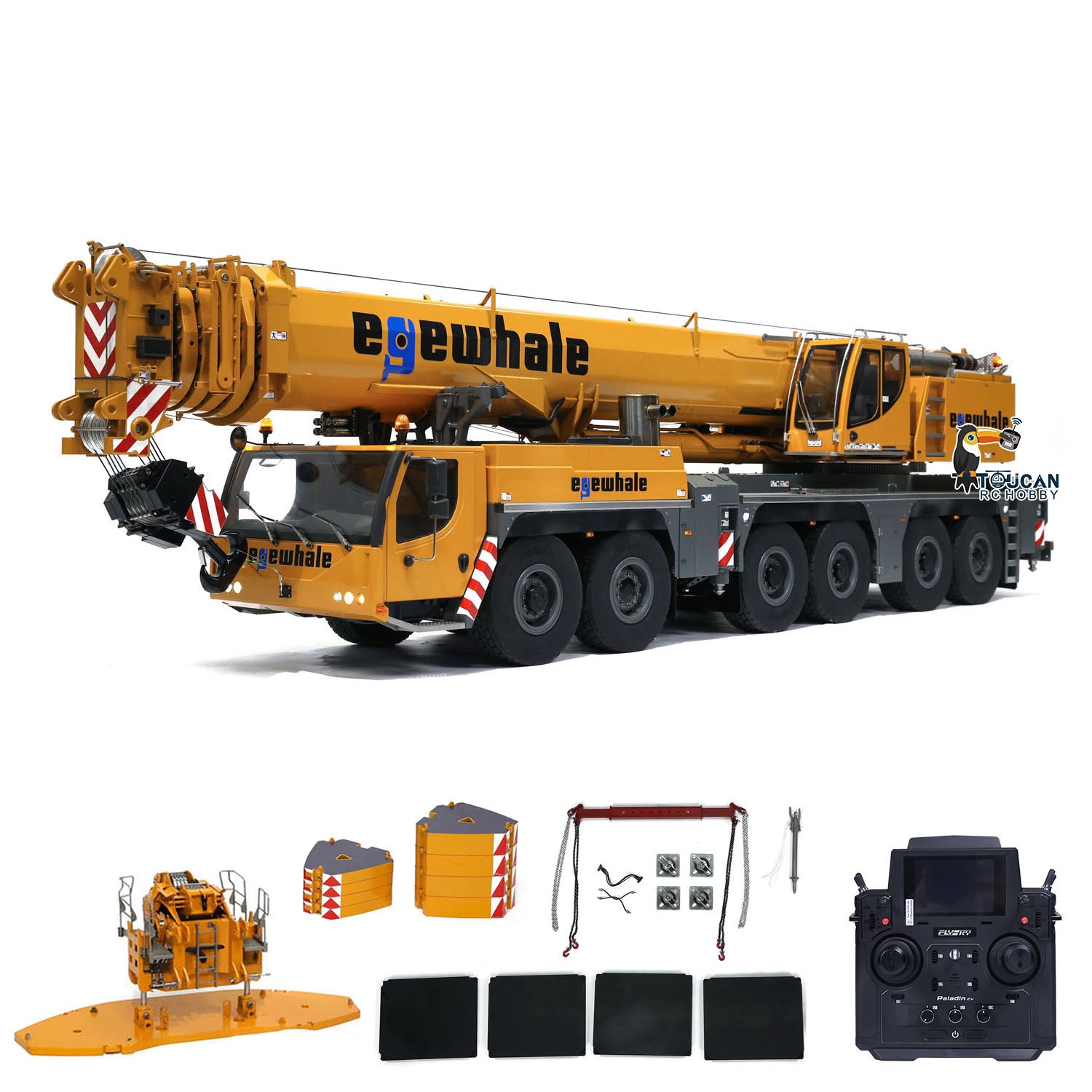

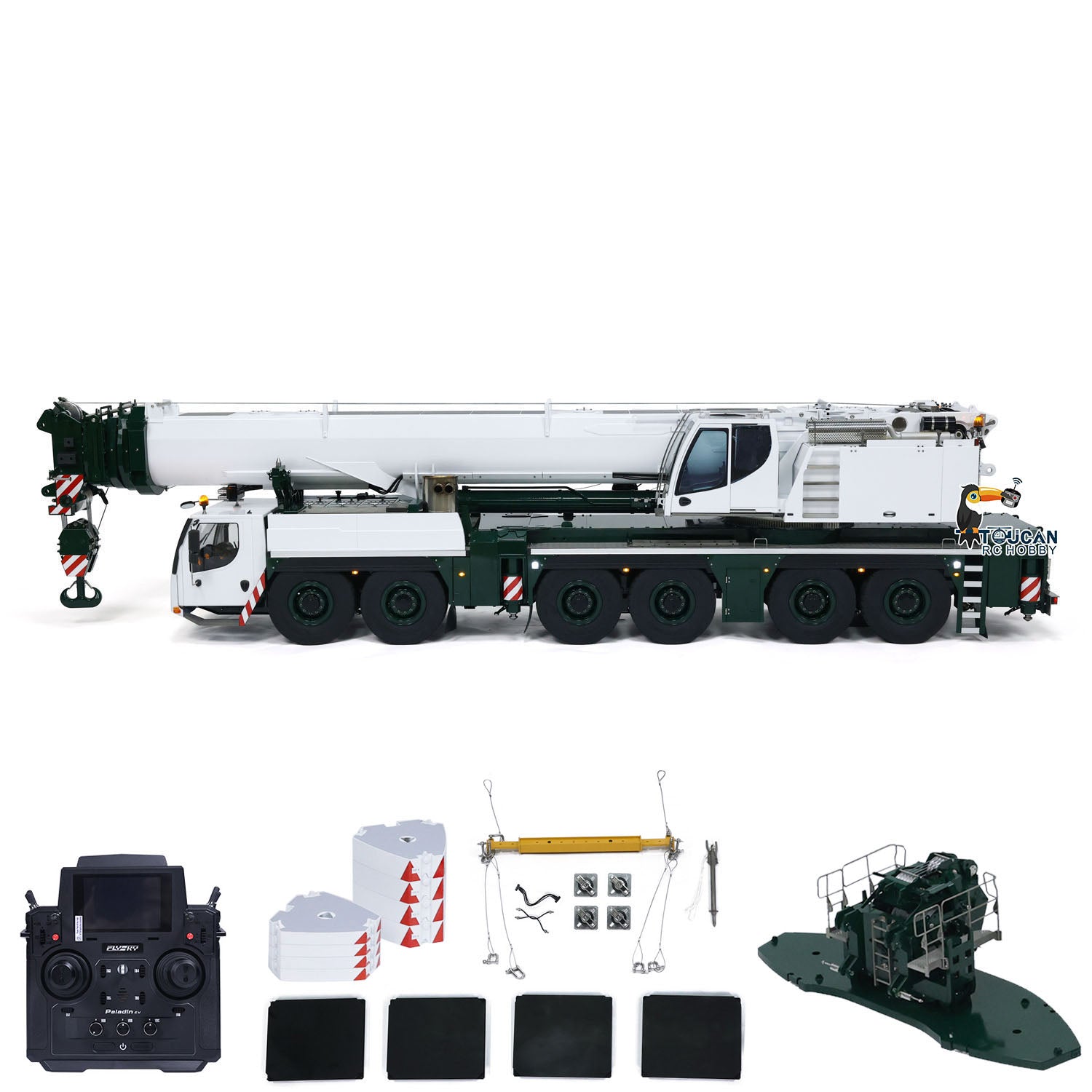

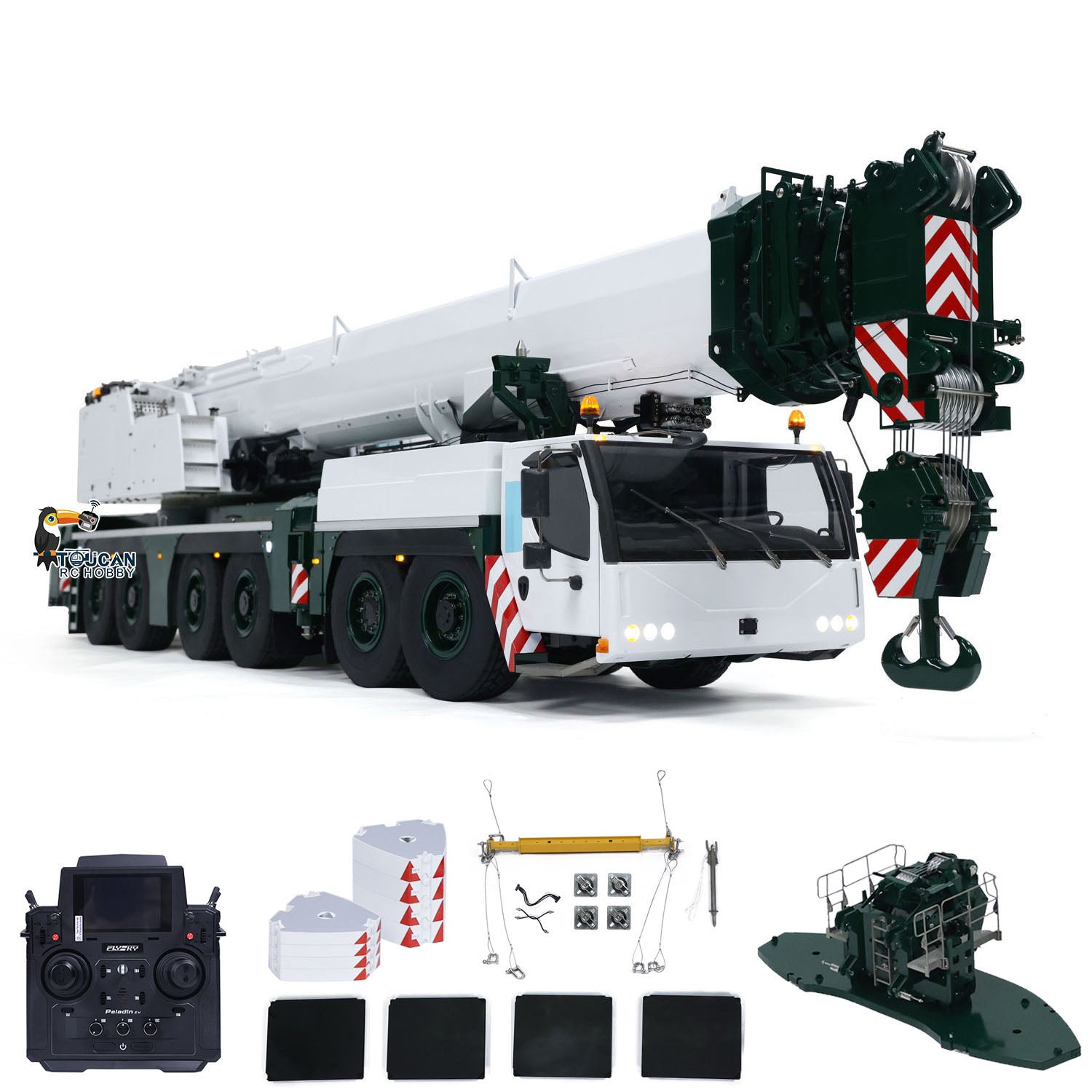

The Package Includes:

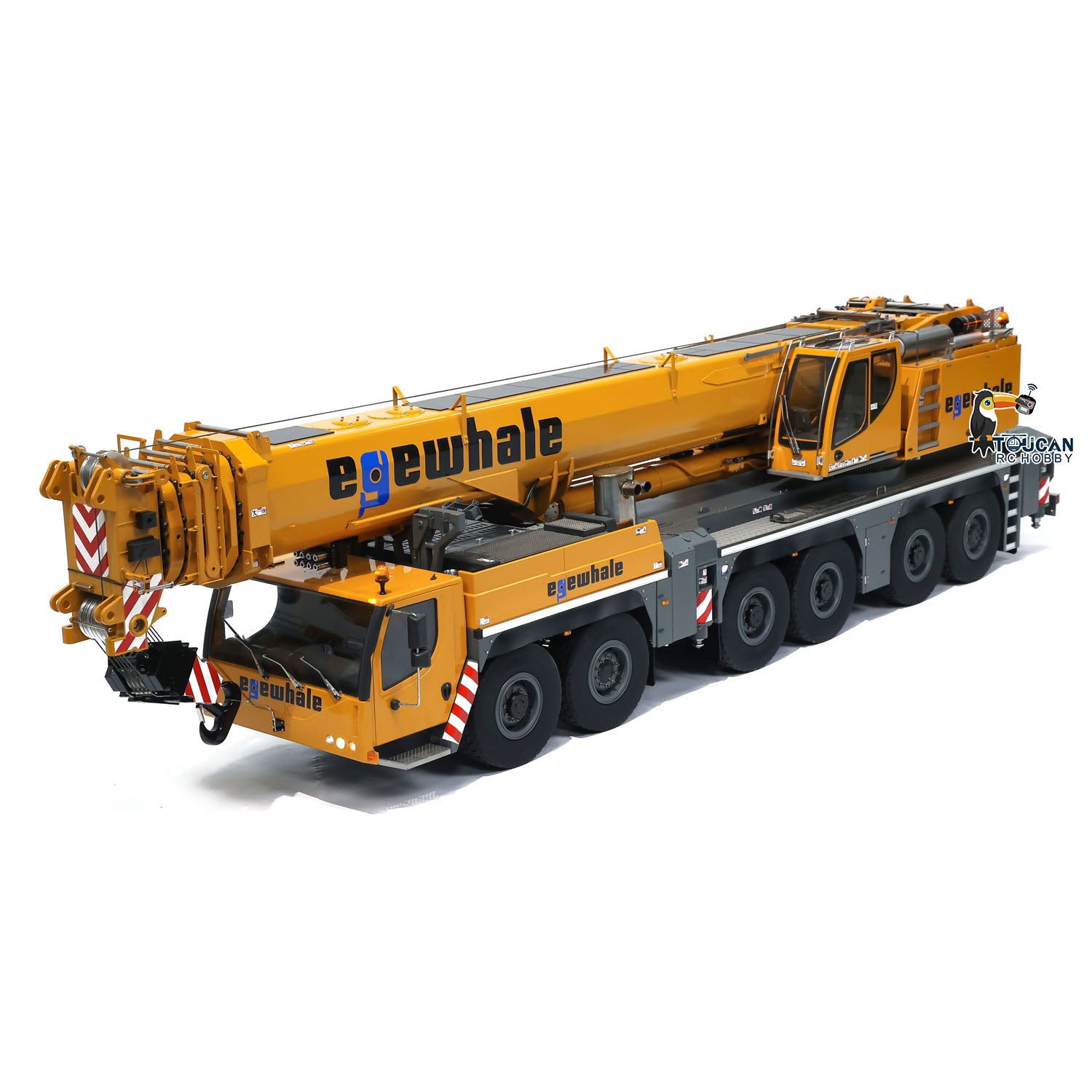

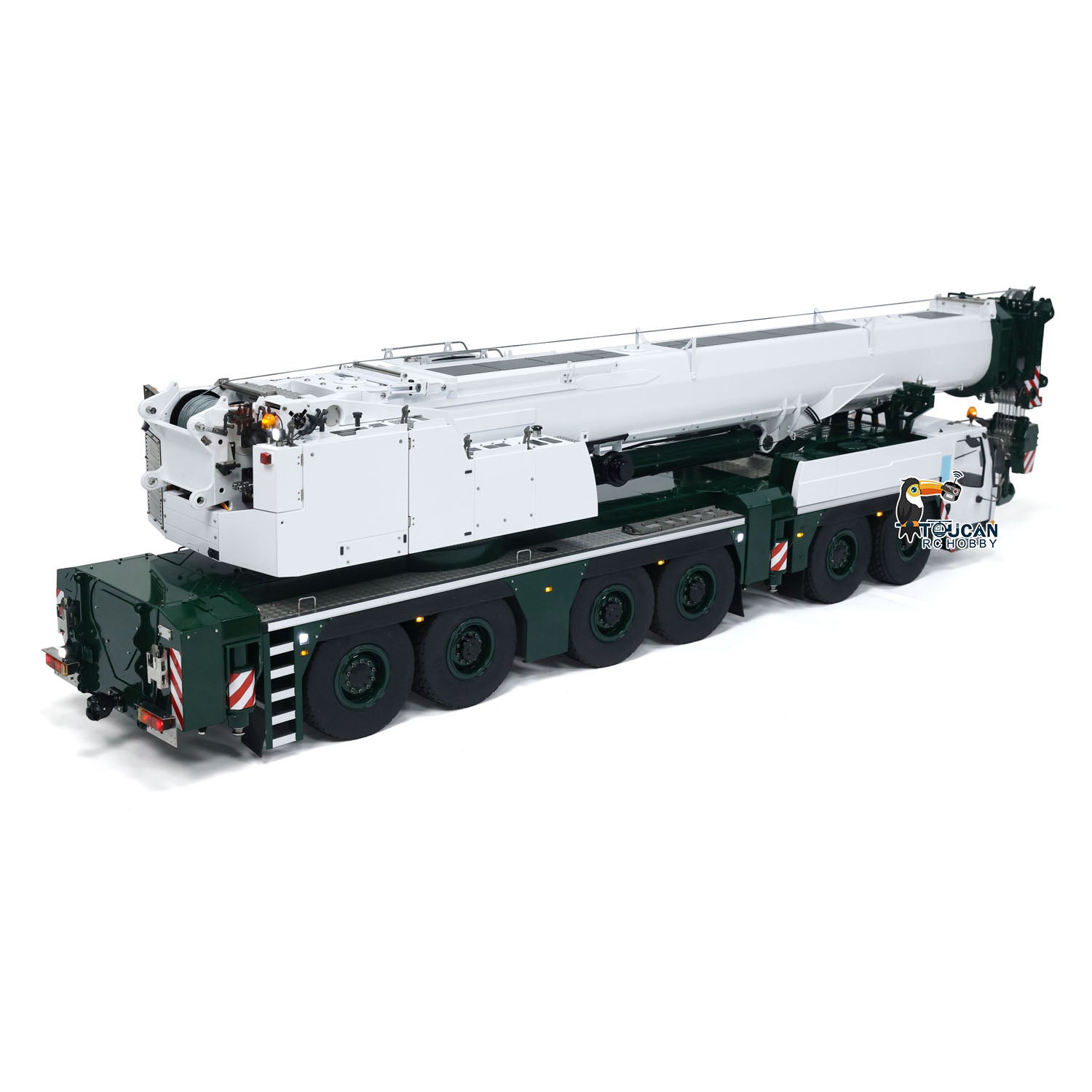

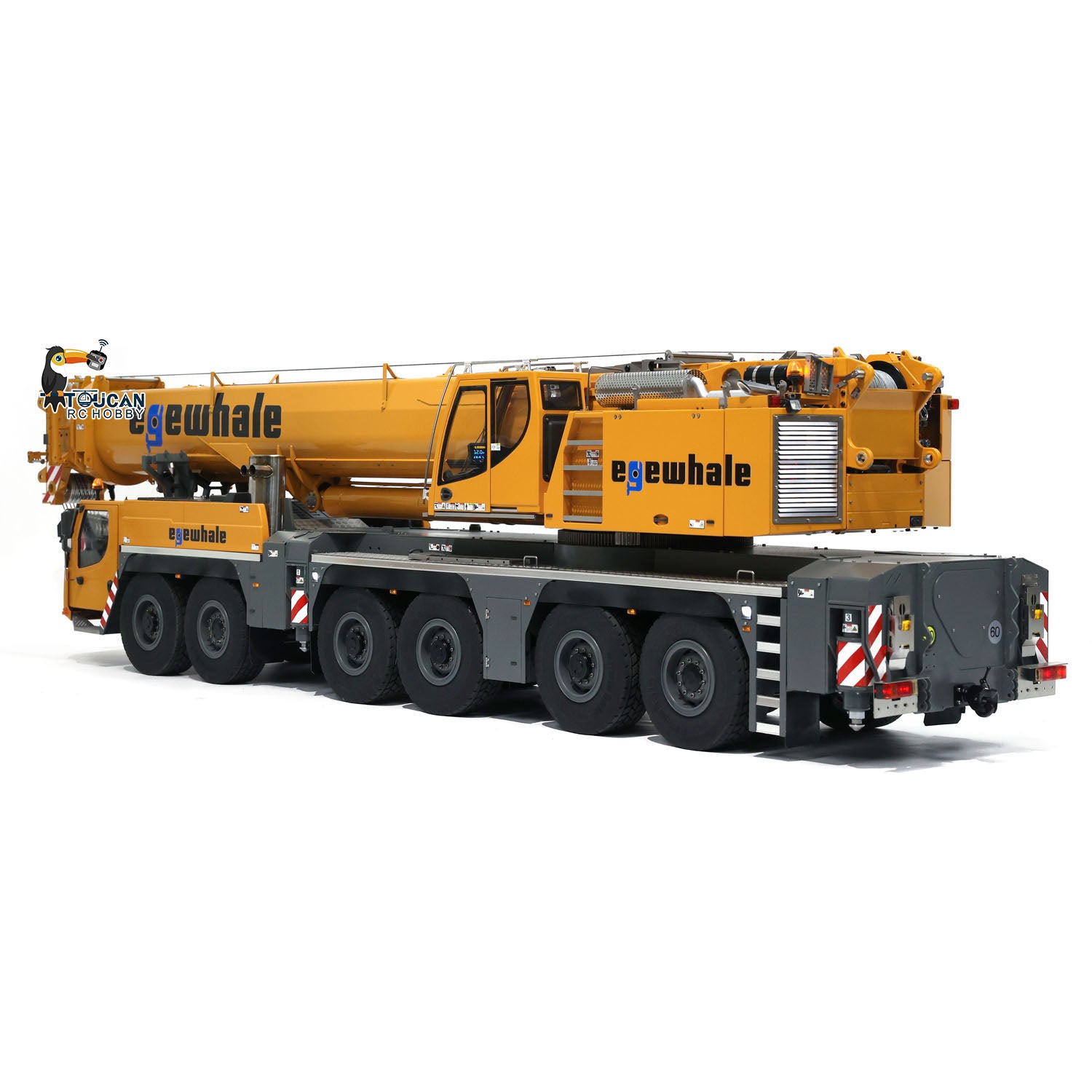

1/14 Mobile Crane Model
Motor
Servo
ESC
Hydraulic System
Sound System
Light System
FlySky PL18EV Remote Controller and Receiver
??? This complete package set covers everything needed to manoeuvre the LTM1350 RC hydraulic crane: The series features an advanced hydraulic system, high brightness lighting fixtures, and a realistic equipment that creates an authentic sonstruction atmosphere. And the top-of-the-line FlySkyPL18EV transmitter provides precise control over every operation of the crane, ensuring you a smooth, enjoyable experience.
The Package Does Not Include:
Battery
Charger
Hydraulic Oil
The Package Options, this item is selected by yourself.

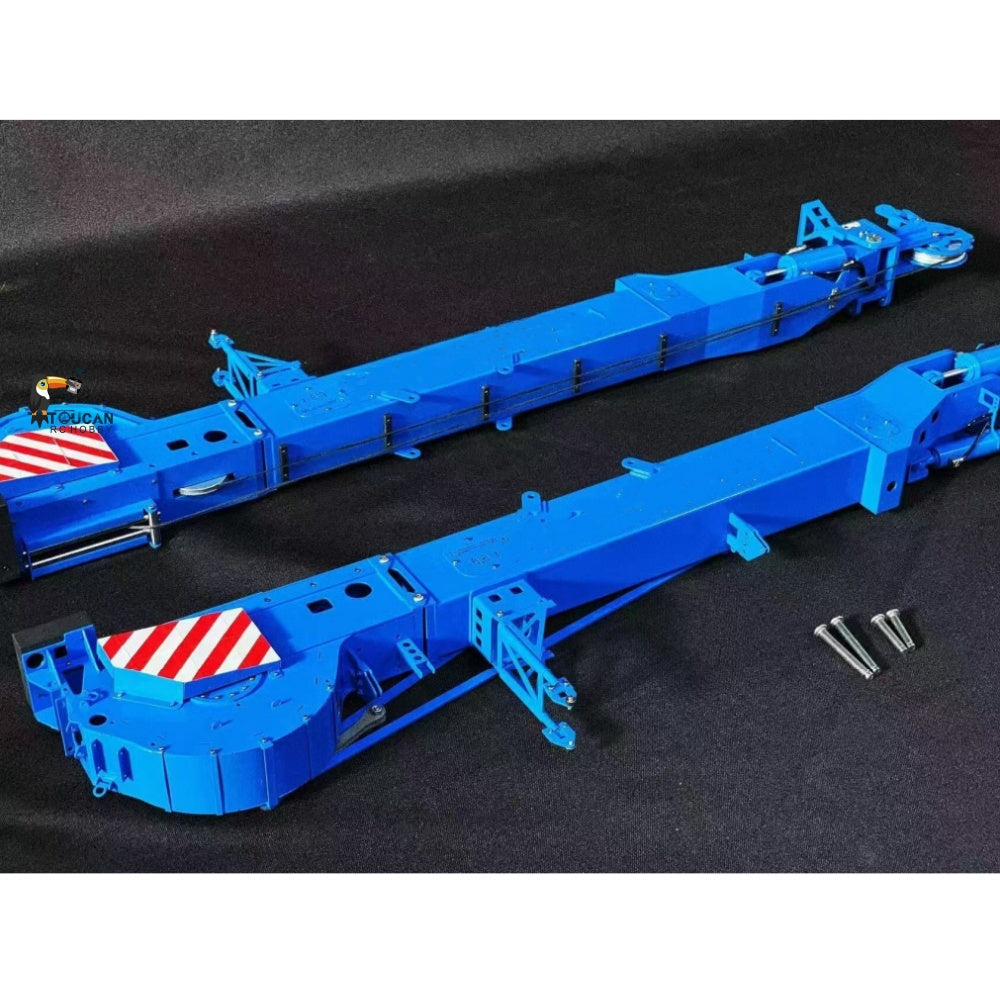

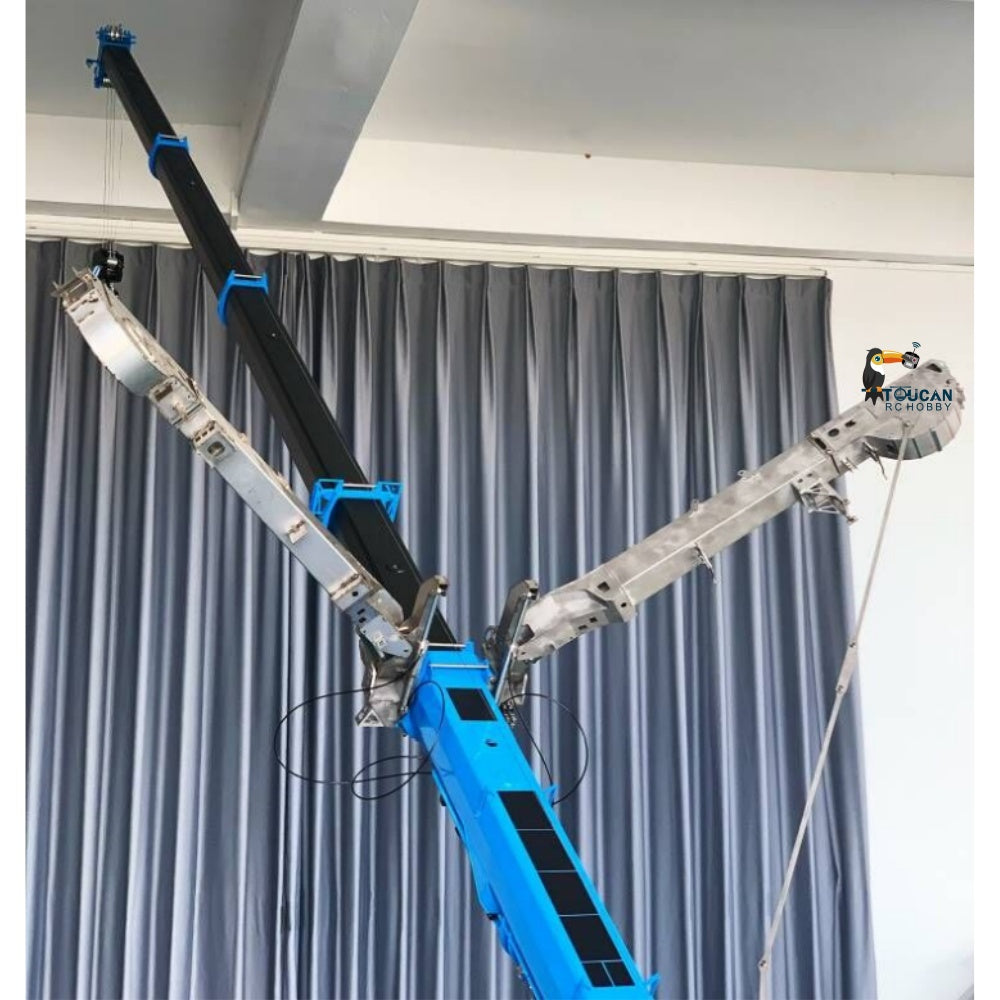

2PC Metal 'Y' Wings (Customized colour and patterns are available.)
Parameter:
Telescopic Boom Mechanism: Pin Boom Telescopic Mechanism
Telescopic Boom Sections: 5+1
Power System: Electric+ Hydraulic
Steering Modes: Road Steering/Crab Steering/ Reduced Swing Out Steering/Independent Rear Axle Steering
Drive/Driven Axle Setup: 12x8
Suspension specifications: hydraulic adjustable coilover suspension
Crane Body MateriaL: Metal+ Plastic
Power Source Requirements: 3S battery+ XT60 12V DC power source £¨Not Included)
Battery Compartment Dimensions(mm): 153x46x36
Receiver Required Channels/ Total Channels: 27/36
Chassis Hydraulic Channels: 4
Superstructure Hydraulic Channels: 7
Maximum Lifting Capacity (kg): 60

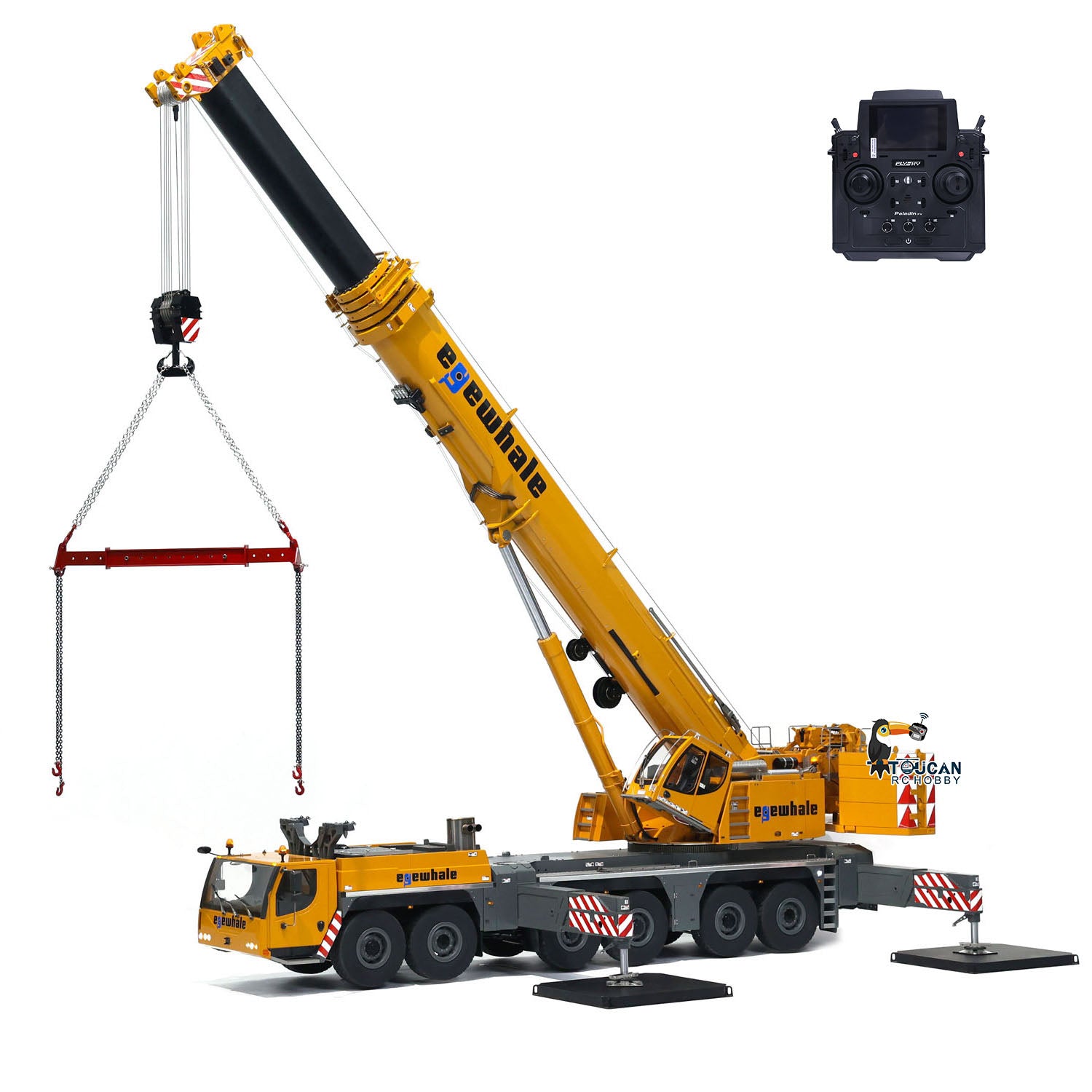

Boom Maximum Overall Height (mm): 5000
Turning Radius (mm): R416
Boom Maximum Elevation Angle: 83
Smallest Turning Radius (mm): R1350
Boom Maximum Elevation Angle: 23
Ground Clearance Max/Min (mm): 26/16
The Angle of Approach (W/O Main Hook): 19
Gearbox/Gear Ratio: 2speed 1/32 &1/10
Drive Motor Specifications: 3660 1000KV
Axle Gear Ratio: 1/10

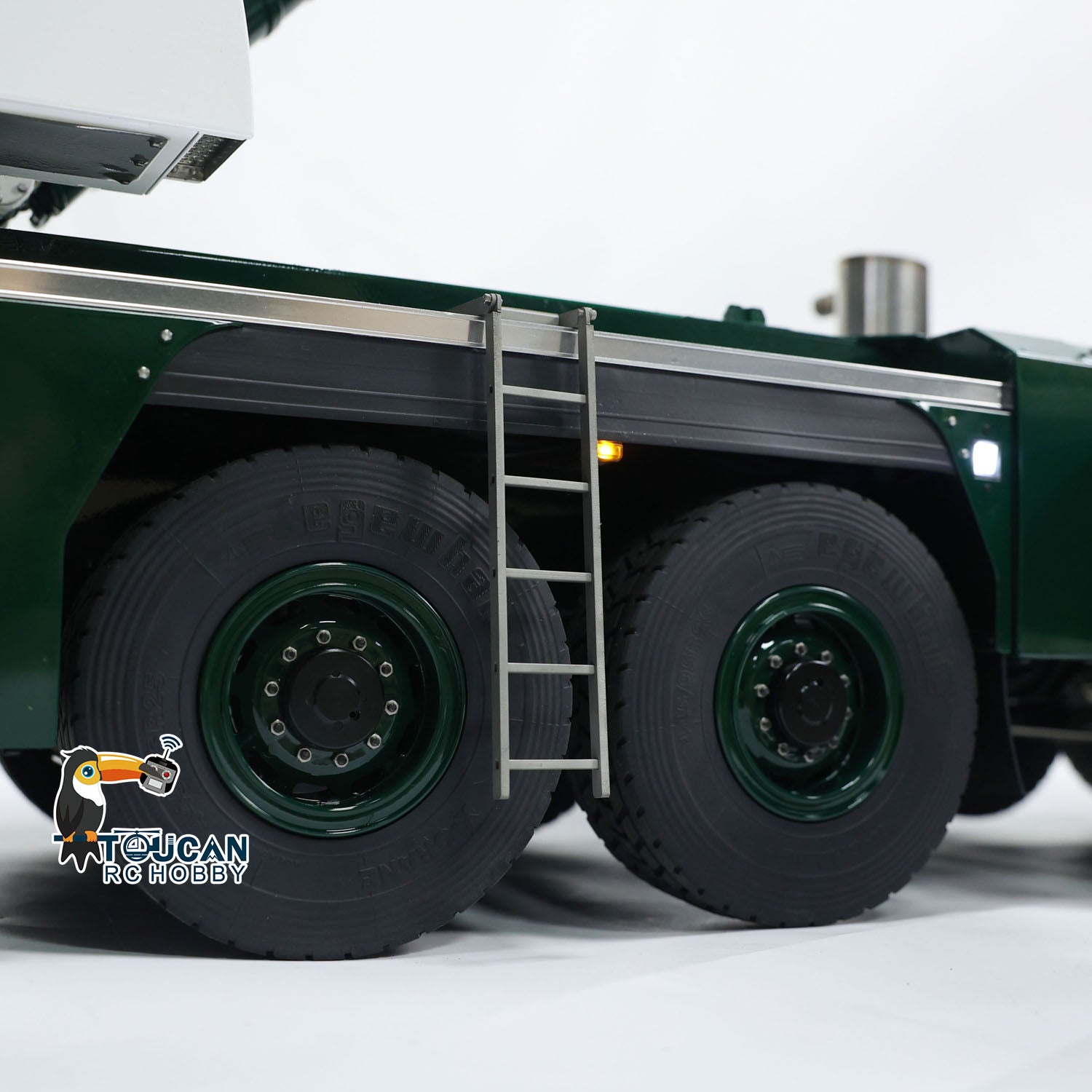

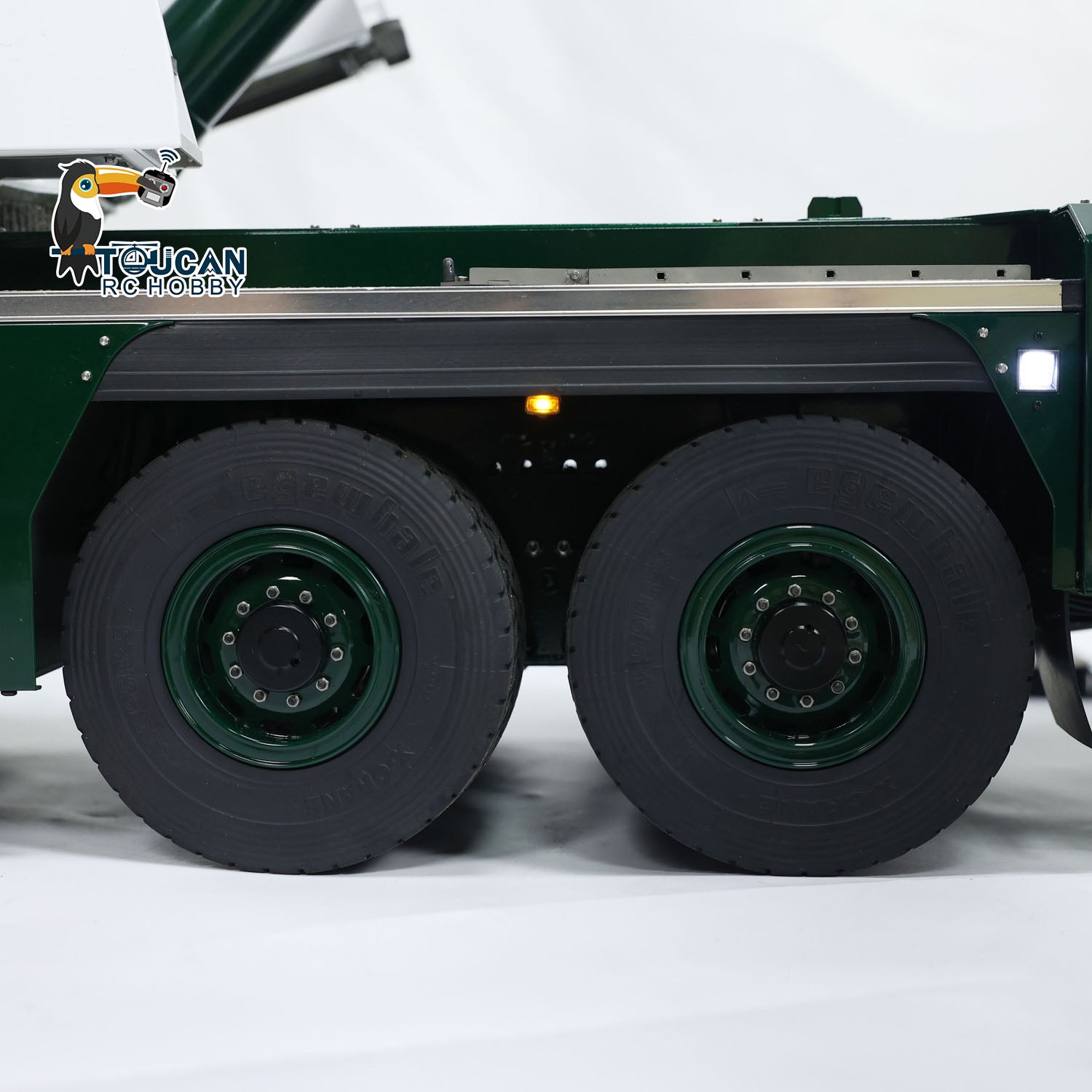

Tire Specifications(mm): 32/¦Õ107.5(445/95R25)
If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
