NOTE: This is item was not opened and not used. After you get it, if there's any problem, please contact with us immediately and provide pictures and videos. We will offer you free technical assistance, replacements and solutions. Please rest assured.
Item Condition: This item was not opened and not used. It was returned because the order mistake.
Specification:
Brand: Degree
Item condition: new, almost assembled & painted.
Scale: 1/14
Material: aluminum alloy, plastic, rubber
Color: red
Weight: 6.5KG
Battery: 2s 7.4v 3000MAH 25C; 120x30x20mm(Not included)
Suitable for: 1/14 TAMIYA RC tractor truck, diy models
ID: DG-997-R

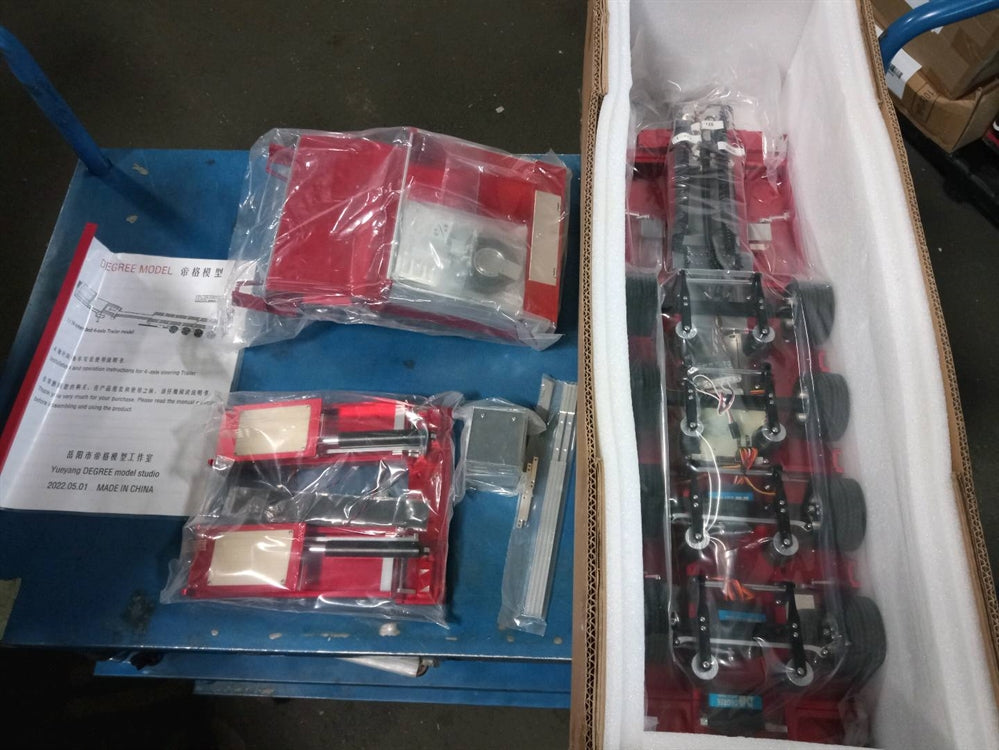

The Package Includes:
1/14 RC Trailer Model
Servo
Motor
Light System
Integrated Circuit Board
The package doesn't include:
Battery
RC Controller & Receiver
Main Features:
1. The total length of the vehicle is 1015 ~ 1345mm, the adjustable length stroke is 330mm, the height of the bearing surface is 84mm, the maximum vertical position of the tail is 268mm, the maximum height of the front battery compartment is 172mm, the horizontal ground clearance is 20mm, the middle width is adjusted by 196 ~ 235mm, and the tail width is adjusted by 196 ~ 235mm.
2. The vehicle weight is 6.5kg and the load limit is 50kg. It is recommended to use a 2S (7.4v) 3000mAh 25C lithium battery with a battery compartment size of 120 * 30 * 20MM.
3. The power supply adopts JST plug. 7 groups of signals are required for vehicle connection, and 18 channel remote controller is recommended.
Note:
1. This product is divided into three parts packaging and delivery. Before use, the product needs to be 2 installed and debugged. The steering system has been debugged normally.
2. Properly adjust the stroke of all steering gear to prevent the steering gear from blocking and burning under high load. All electric parts are driven by N20 reduction motor.
3. During driving, pay attention to the retraction of the front electric support foot to prevent driving from damaging the electric support foot. When there is a transportation load in the middle, it is strictly prohibited to adjust the length and width, and it is strictly prohibited to adjust the mobile platform. Otherwise, the adjustment will fail and the servo motor driver will be burned.
4. There are Brake lamp, reversing lamp, license plate lamp, turn signal lamp A, turn signal lamp B, clearance lamp.
5. The light transmission is Bluetooth transmission. Pay attention to the signal interference. If the red lights of the transmitter and the receiver are flashing, it means that the signal is lost without matching. Each socket at the transmitting end is divided into positive and negative poles, which are connected to the light wire corresponding to the headlamp group.
6. The skid stops and tires need to be installed by yourself.
7. The light system includes the transmitter and the receiver. The receiver and lights have been installed on the Trailer. The transmitter needs to be wired by yourself.
If you have any query or are not sure whether it is correct item that you want, pls feel free to ask me before purchase.
